W7282-4SG-P-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 4POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W7282-4SG-P-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VAC

CONN RCPT FMALE 4POS SOLDER CUP

Part	Connector Type	Contact Material	Primary Material	Features	Mounting Feature	Contact Finish - Mating	Color	Current Rating (Amps)	Applications	Number of Positions	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Backshell Material, Plating	Shielding	Fastening Type	Voltage Rating	Insert Material
Conxall/Switchcraft W7282-4SG-P-300	Receptacle, Female Sockets	Copper Alloy	Plastic	UV Resistant	Bulkhead - Front Side Nut	Gold	Black	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	4	IP66, IP67, IP68	85 °C	-40 °C	Keyed	Thermoplastic	Unshielded	Bayonet Lock	300 VAC	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

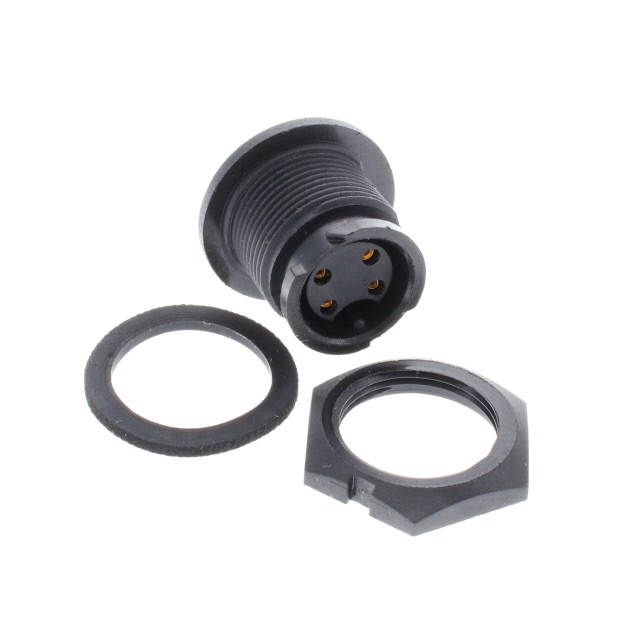

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
