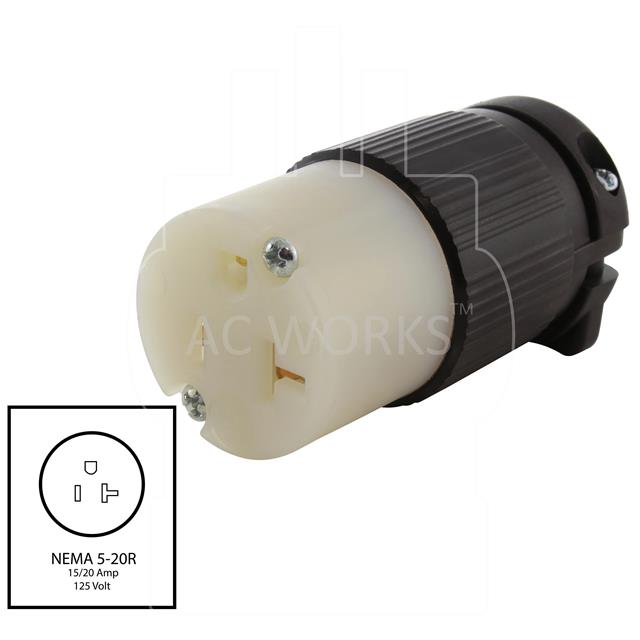

AS520R
ActiveAC Connectors
NEMA 5-20 20A 125V FEMALE
AS520R
ActiveAC Connectors
NEMA 5-20 20A 125V FEMALE
Description
General part information
AS520R
Power Connector Plug, Female Sockets NEMA 5-20R
Technical Specifications
Parameters and characteristics for this part
| Specification | AS520R |
|---|---|
| Approval Agency | cULus |
| Connector Style | NEMA 5-20R |
| Connector Type | Female Sockets, Plug |
| Current Rating | 20 A |
| Features | Chemical Resistant, Weather Resistant, Impact Resistant |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Termination | Screw |
| Voltage Rating | 125 V |
