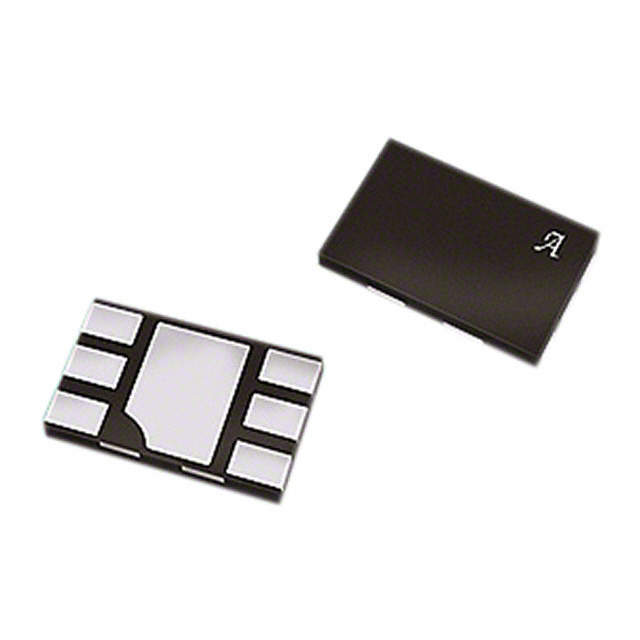

MGA-685T6-TR1G
ObsoleteBroadcom Limited
IC AMP GPS 100MHZ-1.5GHZ 6UTSLP
MGA-685T6-TR1G
ObsoleteBroadcom Limited
IC AMP GPS 100MHZ-1.5GHZ 6UTSLP
Description
General part information
MGA-685T6-TR1G
RF Amplifier IC General Purpose 100MHz ~ 1.5GHz 6-UTSLP (2x1.3)
Technical Specifications
Parameters and characteristics for this part
| Specification | MGA-685T6-TR1G |
|---|---|
| Current - Supply | 10 mA |
| Frequency (Max) | 1.5 GHz |
| Frequency (Min) | 100 MHz |
| Gain | 20.5 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 1.5 dB |
| P1dB | 17.3 dBm |
| Package / Case | 6-XFDFN Exposed Pad |
| Package Length | 2 mm |
| Package Name | 6-UTSLP |
| Package Width | 1.3 mm |
| RF Type | General Purpose |
| Test Frequency | 500 MHz |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
