PD02D104
ObsoleteMicrosemi Corporation

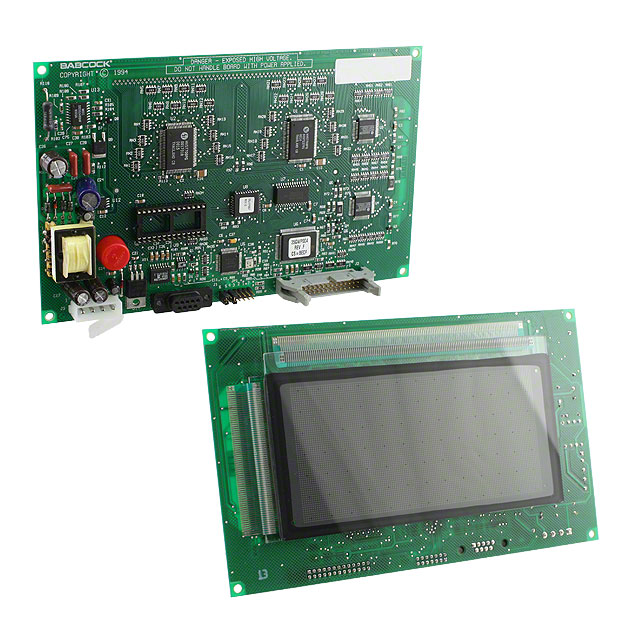

DISPLAY PLASMA GRAPHIC 128X64MOD
PD02D104
ObsoleteMicrosemi Corporation
DISPLAY PLASMA GRAPHIC 128X64MOD
Description
General part information
PD02D104
Graphic LCD Display Module Plasma Parallel, 8-Bit, RS-232C 64 x 128
Technical Specifications
Parameters and characteristics for this part
| Specification | PD02D104 |
|---|---|
| Backlight | Without Backlight |
| Display Type | Plasma |
| Dot Pitch Height | 1.02 mm |
| Dot Pitch Width | 1.02 mm |
| Dot Pixels (Horizontal) | 64 pixels |
| Dot Pixels (Vertical) | 128 pixels |
| Dot Size Height | 0.51 mm |
| Dot Size Width | 0.51 mm |
| Interface | RS-232C, Parallel |
| Interface Data Width | 8 Bit |
| Viewing Area Height | 64.52 mm |
| Viewing Area Width | 129.54 mm |
