1013135

Active

Phoenix Contact

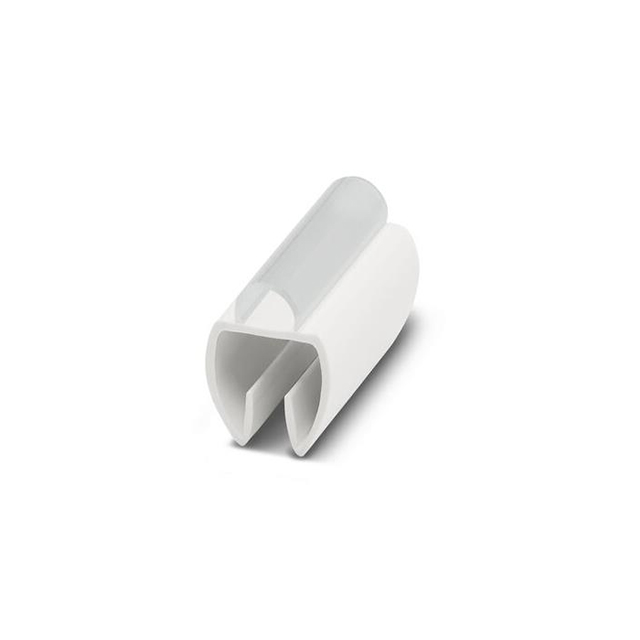

WIRE MARKER CLIP-ON 15MM X 4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1013135

Active

Phoenix Contact

WIRE MARKER CLIP-ON 15MM X 4MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1013135	PATO Series

Cable Diameter	-	4.4 mm
Cable Diameter	-	0.079 - 0.11 in
Cable Diameter	-	2 - 2.8 mm
Cable Diameter	-	0.138 - 0.173 in
Cable Diameter	-	3.5 mm
Cable Diameter [diameter]	4.4 mm, 8 mm	4.4 - 10 mm
Cable Diameter [diameter]	0.173 in, 0.315 in	0.173 - 0.394 in
Color	Transparent	Transparent
Legend	Blank	Blank
Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-50 °C	-50 °C
Size [x]	4 mm	4 - 23 mm
Size [x]	0.16 "	0.16 - 0.91 "
Size [y]	15 mm	4 - 30 mm
Size [y]	0.59 in	0.16 - 1.18 "
Type	Wire Marker Carrier, Clip-On	Wire Marker, Clip-On, Wire Marker Carrier, Clip-On

PATO Series

PATO 2/18

Part	Legend	Material	Operating Temperature [Min]	Operating Temperature [Max]	Type	Color	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Max] [diameter]	Size [y]	Size [x]	Size [x]	Size [y]	Cable Diameter [diameter]	Cable Diameter [diameter]
Phoenix Contact 0823753	Blank	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	Wire Marker, Clip-On	Transparent	4.4 mm	0.11 in	2.8 mm	0.173 in
Phoenix Contact 1013876	Blank	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	Wire Marker Carrier, Clip-On	Transparent		0.079 in	2 mm	0.138 in	3.5 mm	0.39 "	10 mm	0.16 "	4 mm
Phoenix Contact 1013135	Blank	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	Wire Marker Carrier, Clip-On	Transparent						0.59 in	4 mm	0.16 "	15 mm	4.4 mm, 8 mm	0.173 in, 0.315 in
Phoenix Contact 1013892	Blank	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	Wire Marker Carrier, Clip-On	Transparent		0.079 in	2 mm	0.138 in	3.5 mm	0.16 in	23 mm	0.91 in	4 mm
Phoenix Contact 1013119	Blank	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	Wire Marker Carrier, Clip-On	Transparent		0.079 in	2 mm	0.138 in	3.5 mm	0.59 in	4 mm	0.16 "	15 mm
Phoenix Contact 1013902	Blank	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	Wire Marker Carrier, Clip-On	Transparent	4.4 mm	0.11 in	2.8 mm	0.173 in		0.16 in	23 mm	0.91 in	4 mm
Phoenix Contact 1013148	Blank	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	Wire Marker Carrier, Clip-On	Transparent						0.59 in	4 mm	0.16 "	15 mm	6.7 mm, 10 mm	0.264 in, 0.394 in
Phoenix Contact 0827082	Blank	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	Wire Marker Carrier, Clip-On	Transparent	4.4 mm	0.11 in	2.8 mm	0.173 in		0.47 "	4 mm	0.16 "	12 mm
Phoenix Contact 1013889	Blank	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	Wire Marker Carrier, Clip-On	Transparent	4.4 mm	0.11 in	2.8 mm	0.173 in		0.39 "	10 mm	0.16 "	4 mm
Phoenix Contact 0822505	Blank	Poly-Vinyl Chloride (PVC)	-50 °C	80 C	Wire Marker Carrier, Clip-On	Transparent	4.4 mm	0.11 in	2.8 mm	0.173 in		1.18 in	4 mm	0.16 "	30 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.65

Description

General part information

PATO Series

Wire Marker Carrier, Clip-On 0.59" W x 0.16" L (15.0mm x 4.0mm) Transparent Poly-Vinyl Chloride (PVC)
