2315256
ActivePhoenix Contact

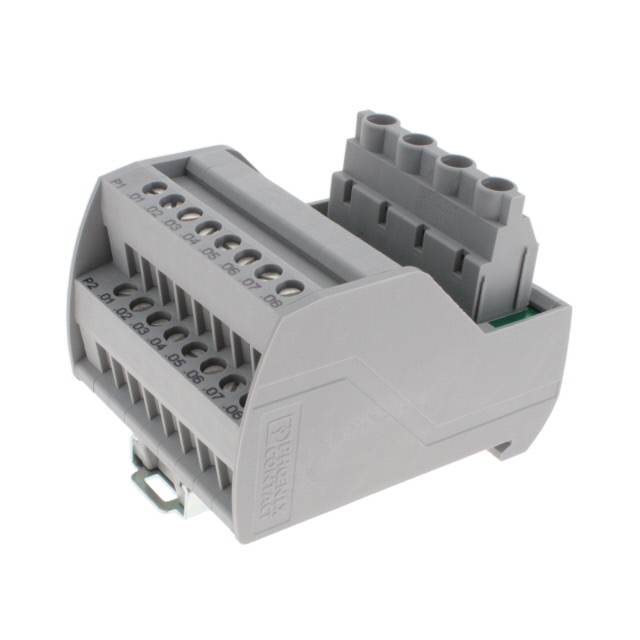

PWR DISTRIB BLOCK 2POS 15A 250V
2315256
ActivePhoenix Contact
PWR DISTRIB BLOCK 2POS 15A 250V
Description
General part information
2315256
2 Pole Power Distribution Block 15 A 250 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 2315256 |
|---|---|
| Current Rating | 15 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 2 |
| Line Side Wire Size (Max) | 24 AWG |
| Line Side Wire Size (Min) | 10 AWG |
| Load Side Connection Type | Terminal Blocks |
| Load Side Connections Per Pole | 8 |
| Load Side Wire/Stud Size (AWG) (Max) | 24 AWG |
| Load Side Wire/Stud Size (AWG) (Min) | 12 AWG |
| Number of Poles | 2 |
| Type | Power Distribution Block |
| Voltage - Rated | 250 V |
