Description
General part information

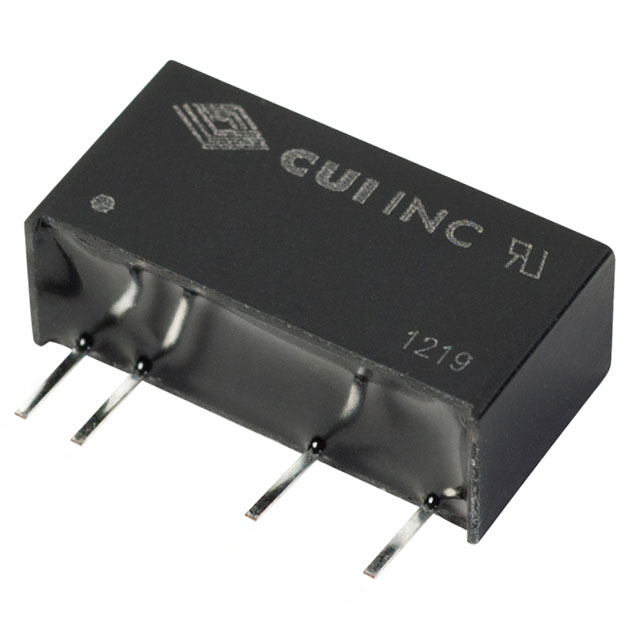

VFSD2-S5-S15-SIP
Isolated Module DC DC Converter 1 Output 15V 133mA 4.5V - 5.5V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VFSD2-S5-S15-SIP |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 133 mA |
| Efficiency | 84 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | 7-SIP Module |
| Power (Watts) | 2 w |
| Size / Dimension Height | 0.39 in |
| Size / Dimension Length | 0.77 in |
| Size / Dimension Width | 0.28 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 5.5 V |
| Voltage - Input (Min) | 4.5 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 15 V |
