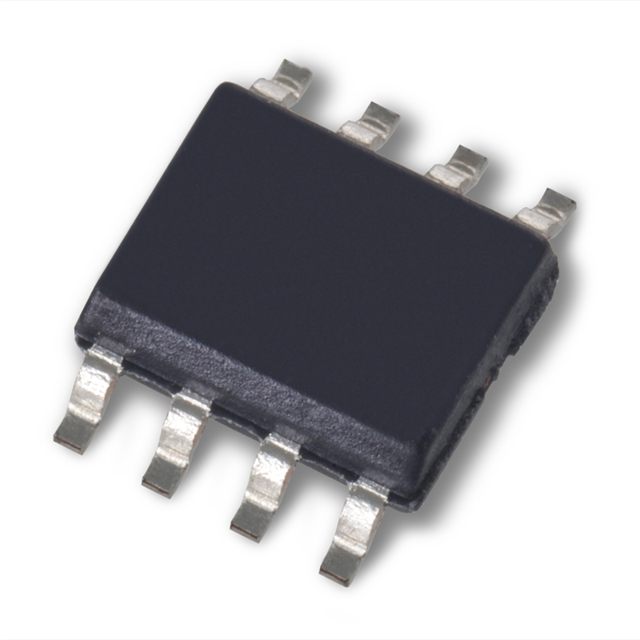

IT130A SOIC 8L ROHS

Obsolete

Linear Integrated Systems, Inc.

TIGHTLY MATCHED, MONOLITHIC DUAL

Search across all available documentation for this part.

Obsolete

Linear Integrated Systems, Inc.

TIGHTLY MATCHED, MONOLITHIC DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	IT130A SOIC 8L ROHS

Current - Collector (Ic) (Max) [Max]	10 mA
Current - Collector Cutoff (Max) [Max]	1 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	225
Frequency - Transition	110 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Power - Max [Max]	500 mW
Supplier Device Package	8-SOIC
Transistor Type	2 PNP (Dual)
Voltage - Collector Emitter Breakdown (Max)	45 V

TIGHTLY MATCHED, MONOLITHIC DUAL

Part	Supplier Device Package	Mounting Type	Voltage - Collector Emitter Breakdown (Max)	Transistor Type	Package / Case	Package / Case [y]	Package / Case [x]	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Frequency - Transition
Linear Integrated Systems, Inc. IT130A SOIC 8L ROHS	8-SOIC	Surface Mount	45 V	2 PNP (Dual)	8-SOIC	3.9 mm	0.154 in	10 mA	225	-55 °C	150 °C	1 nA	500 mW	110 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor Array 2 PNP (Dual) 45V 10mA 110MHz 500mW Surface Mount 8-SOIC
