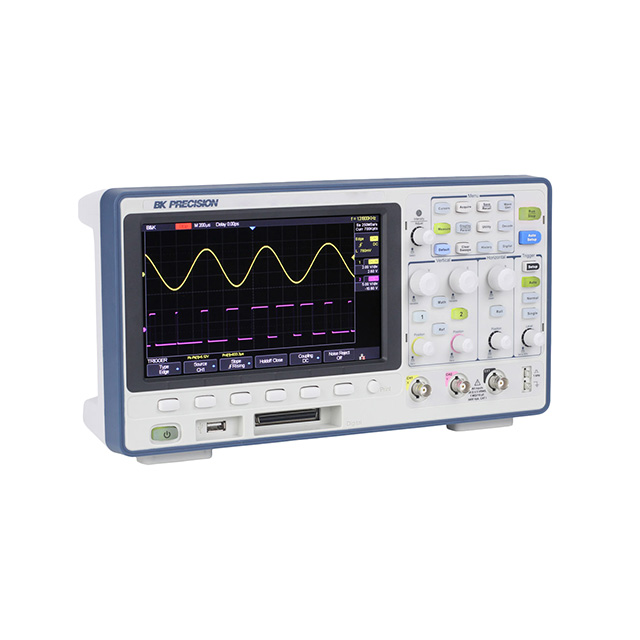

2542C
ObsoleteB&K PRECISION
OSCOPE 100MHZ 1GSA/S DGTL STORGE
2542C
ObsoleteB&K PRECISION
OSCOPE 100MHZ 1GSA/S DGTL STORGE
Description
General part information
2542C
100 MHz Bench, Digital Oscilloscopes USB Interface LCD - Color Display 2 Channel 400V Record, Playback, Save, Trend
Technical Specifications
Parameters and characteristics for this part
| Specification | 2542C |
|---|---|
| Analog Channels | 2 |
| Bandwidth | 100 MHz |
| Channel Types | Analog |
| Channels (Count) | 2 |
| Display Type | LCD - Color |
| Function | Record, Save, Trend, Playback |
| Includes | USB Cable, Cord, Manual |
| Input Impedance (Capacitance) | 22 pF |
| Input Impedance (Resistance) | 1 MΩ |
| Interface | USB |
| Memory Size | 14 Mpts |
| Rise Time (Typ) | 3.5 ns |
| Sampling Rate (Per Second) | 1 GHz |
| Type | Digital, Bench |
| Voltage - Input (Max) | 400 VDC |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
