4-794677-0
ActiveTE Connectivity AMP Connectors

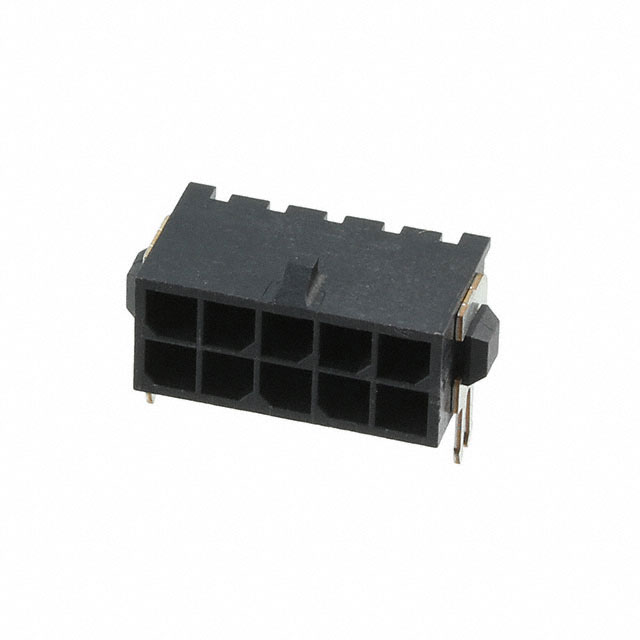

CONN HEADER R/A 10POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4-794677-0
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4-794677-0 | 794677 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Tin-Lead |
| Contact Finish - Post | Tin | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 2.54 çm | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 7.37 mm | 7.37 mm |
| Insulation Height | 0.29 in | 0.29 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 10 | 2 - 22 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794677 Series
CONN HEADER R/A 4POS 3MM
| Part | Contact Type | Current Rating (Amps) | Voltage Rating | Material Flammability Rating | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Material | Insulation Color | Contact Shape | Pitch - Mating | Pitch - Mating | Insulation Material | Fastening Type | Insulation Height | Insulation Height | Number of Rows | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Termination | Shrouding | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Mounting Type | Contact Finish - Mating | Applications | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794677-4 | Male Pin | Varies by Wire Gauge | 250 VDC | UL94 V-0 | All | -40 °C | 105 ░C | Header | Brass | Black | Square | 0.118 in | 3 mm | Nylon, Polyamide (PA) | Locking Ramp | 7.37 mm | 0.29 in | 2 | 3 mm | 0.118 in | Tin-Lead | Solder | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | 2.54 çm | 100 çin | 4 | Through Hole, Right Angle | Tin-Lead | General Purpose | |
TE Connectivity AMP Connectors 3-794677-4 | Male Pin | Varies by Wire Gauge | 250 VDC | UL94 V-0 | All | -40 °C | 105 ░C | Header | Brass | Black | Square | 0.118 in | 3 mm | Nylon, Polyamide (PA) | Locking Ramp | 7.37 mm | 0.29 in | 2 | 3 mm | 0.118 in | Tin | Solder | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | 2.54 çm | 100 çin | 4 | Through Hole, Right Angle | General Purpose | ||
TE Connectivity AMP Connectors 794677-2 | Male Pin | Varies by Wire Gauge | 250 VDC | UL94 V-0 | All | -40 °C | 105 ░C | Header | Brass | Black | Square | Nylon, Polyamide (PA) | Locking Ramp | 7.37 mm | 0.29 in | 2 | 3 mm | 0.118 in | Tin-Lead | Solder | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | 2.54 çm | 100 çin | 2 | Through Hole, Right Angle | Tin-Lead | General Purpose | |||
TE Connectivity AMP Connectors 4-794677-2 | Male Pin | Varies by Wire Gauge | 250 VDC | UL94 V-0 | All | -40 °C | 105 ░C | Header | Brass | Black | Square | 0.118 in | 3 mm | Nylon, Polyamide (PA) | Locking Ramp | 7.37 mm | 0.29 in | 2 | 3 mm | 0.118 in | Tin | Solder | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | 2.54 çm | 100 çin | 12 | Through Hole, Right Angle | General Purpose | ||
TE Connectivity AMP Connectors 4-794677-0 | Male Pin | Varies by Wire Gauge | 250 VDC | UL94 V-0 | All | -40 °C | 105 ░C | Header | Brass | Black | Square | 0.118 in | 3 mm | Nylon, Polyamide (PA) | Locking Ramp | 7.37 mm | 0.29 in | 2 | 3 mm | 0.118 in | Tin | Solder | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | 2.54 çm | 100 çin | 10 | Through Hole, Right Angle | General Purpose | ||
TE Connectivity AMP Connectors 4-794677-8 | Male Pin | Varies by Wire Gauge | 250 VDC | UL94 V-0 | All | -40 °C | 105 ░C | Header | Brass | Black | Square | 0.118 in | 3 mm | Nylon, Polyamide (PA) | Locking Ramp | 7.37 mm | 0.29 in | 2 | 3 mm | 0.118 in | Tin | Solder | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | 2.54 çm | 100 çin | 18 | Through Hole, Right Angle | General Purpose | ||
TE Connectivity AMP Connectors 1-794677-2 | Male Pin | Varies by Wire Gauge | 250 VDC | UL94 V-0 | All | -40 °C | 105 ░C | Header | Brass | Black | Square | 0.118 in | 3 mm | Nylon, Polyamide (PA) | Locking Ramp | 7.37 mm | 0.29 in | 2 | 3 mm | 0.118 in | Tin-Lead | Solder | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | 2.54 çm | 100 çin | 12 | Through Hole, Right Angle | Tin-Lead | General Purpose | |
TE Connectivity AMP Connectors 5-794677-2 | Male Pin | Varies by Wire Gauge | 250 VDC | UL94 V-0 | All | -40 °C | 105 ░C | Header | Brass | Black | Square | 0.118 in | 3 mm | Nylon, Polyamide (PA) | Locking Ramp | 7.37 mm | 0.29 in | 2 | 3 mm | 0.118 in | Tin | Solder | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | 2.54 çm | 100 çin | 22 positions | Through Hole, Right Angle | General Purpose | ||
TE Connectivity AMP Connectors 3-794677-2 | Male Pin | Varies by Wire Gauge | 250 VDC | UL94 V-0 | All | -40 °C | 105 ░C | Header | Brass | Black | Square | Nylon, Polyamide (PA) | Locking Ramp | 7.37 mm | 0.29 in | 2 | 3 mm | 0.118 in | Tin | Solder | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | 2.54 çm | 100 çin | 2 | Through Hole, Right Angle | General Purpose | ||||
TE Connectivity AMP Connectors 794677-6 | Male Pin | Varies by Wire Gauge | 250 VDC | UL94 V-0 | All | -40 °C | 105 ░C | Header | Brass | Black | Square | 0.118 in | 3 mm | Nylon, Polyamide (PA) | Locking Ramp | 7.37 mm | 0.29 in | 2 | 3 mm | 0.118 in | Tin-Lead | Solder | Shrouded - 4 Wall | 2.54 µm | 100 µin | Board to Cable/Wire | 2.54 çm | 100 çin | 6 | Through Hole, Right Angle | Tin-Lead | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.98 | |
| 10 | $ 2.65 | |||
| 195 | $ 2.36 | |||
| 585 | $ 2.17 | |||
| 2145 | $ 1.57 | |||
| 5070 | $ 1.68 | |||
Description
General part information
794677 Series
Connector Header Through Hole, Right Angle 10 position 0.118" (3.00mm)
