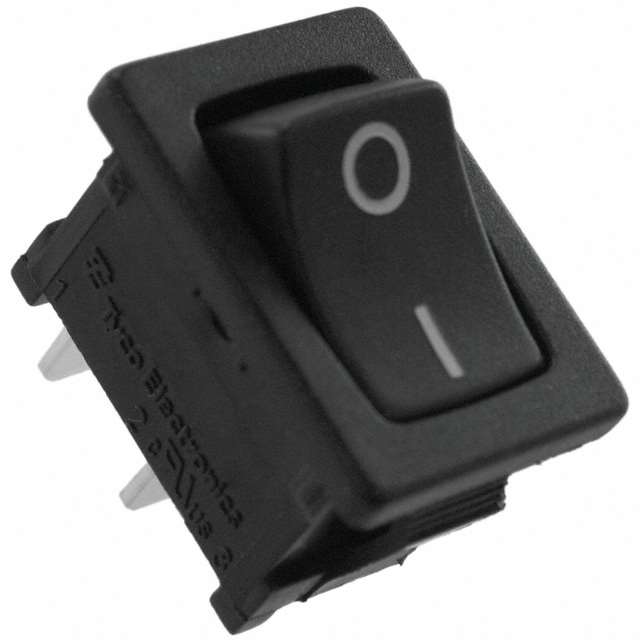

PRASA1-16F-BB0BW
ActiveTE Connectivity Raychem Cable Protection
SWITCH ROCKER SPST 16A 125V
Deep-Dive with AI
DocumentsPRA, PRB, PRD Series Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PRASA1-16F-BB0BW |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Approval Agency | ENEC, UL, VDE |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Ingress Protection | Dust Proof |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 19.2 mm |
| Panel Cutout Dimensions [y] | 13 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.97 | |
| 10 | $ 1.76 | |||
| 25 | $ 1.66 | |||
| 40 | $ 1.58 | |||
| 100 | $ 1.51 | |||
| 300 | $ 1.45 | |||
| 500 | $ 1.35 | |||
| 1000 | $ 1.29 | |||
Description
General part information
PRASA1 Series
Rocker Switch SPST 16A (AC) 125 V Panel Mount, Snap-In
