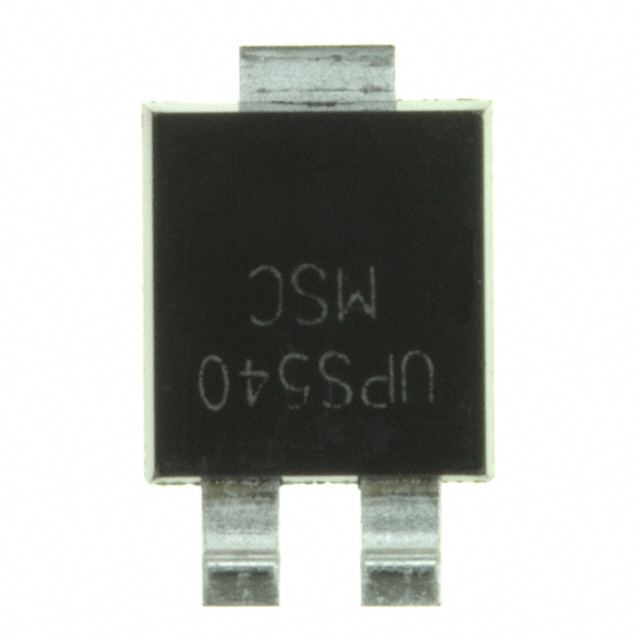

UPS540E3/TR13
ActiveMicrochip Technology
SCHOTTKY BARRIER RECTIFIER 5.0A, 40V, VF=0.45V POWERMITE3 T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UPS540E3/TR13
ActiveMicrochip Technology
SCHOTTKY BARRIER RECTIFIER 5.0A, 40V, VF=0.45V POWERMITE3 T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UPS540E3/TR13 | UPS540 Series |
|---|---|---|
| - | - | |
| Capacitance @ Vr, F | 250 pF | 250 pF |
| Current - Average Rectified (Io) | 5 A | 5 A |
| Current - Reverse Leakage @ Vr | 500 µA | 500 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature - Junction [Max] | 125 °C | 125 °C |
| Operating Temperature - Junction [Min] | -55 °C | -55 °C |
| Package / Case | Powermite®3 | Powermite®3, DO-216AA |
| Speed | 200 mA, 500 ns | 200 - 500 mA |
| Supplier Device Package | Powermite 3 | Powermite 3, Powermite |
| Technology | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 100 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 100 | $ 0.45 | |||
| Tape & Reel (TR) | 5000 | $ 0.45 | ||
| Microchip Direct | N/A | 1 | $ 0.48 | |
| 100 | $ 0.45 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.41 | |||
| Newark | Each | 500 | $ 0.43 | |
UPS540 Series
Schottky Barrier Rectifier 5.0A, 40V, VF=0.45V PowerMite3 T/R
| Part | Technology | Capacitance @ Vr, F | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Current - Average Rectified (Io) | Voltage - DC Reverse (Vr) (Max) [Max] | Mounting Type | Current - Reverse Leakage @ Vr | Supplier Device Package | Package / Case | Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UPS540E3/TR13 | |||||||||||
Microchip Technology UPS540E3/TR13 | Schottky | 250 pF | -55 °C | 125 °C | 5 A | 40 V | Surface Mount | 500 µA | Powermite 3 | Powermite®3 | 200 mA, 500 ns |
Microchip Technology UPS540/TR13 | Schottky | 250 pF | -55 °C | 125 °C | 5 A | 40 V | Surface Mount | 500 µA | Powermite | DO-216AA | 200 mA, 500 ns |
Description
General part information
UPS540 Series
Very low thermal resistance package. Guard-ring-die construction for transient protection. Low forward voltage.
