104482-9
ActiveTE Connectivity AMP Connectors

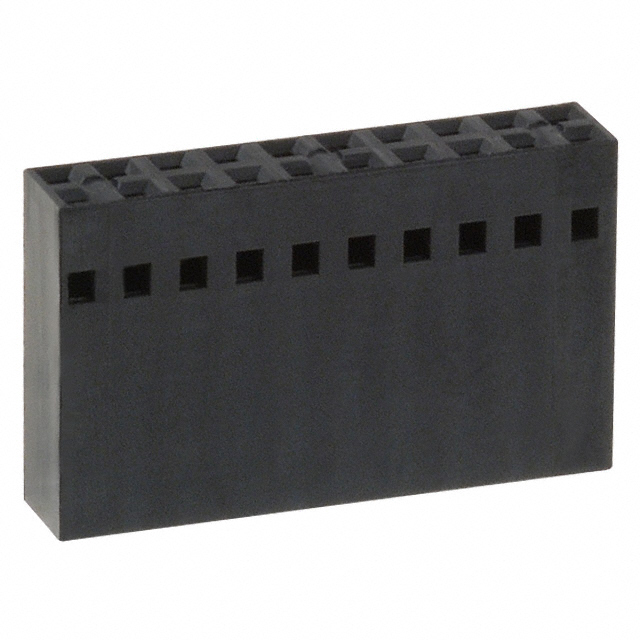

CONN RCPT HSG 20POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
104482-9
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 20POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104482-9 | 104482 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Insulation Material | - | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 20 | 4 - 40 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 4000 | $ 0.68 | |
104482 Series
CONN RCPT HSG 12POS 2.54MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Number of Rows | Row Spacing [x] | Row Spacing | Color | Mounting Type | Insulation Material | Connector Type | Number of Positions | Contact Termination | Note | Pitch [x] | Pitch [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104482-5 | 125 °C | -65 ░C | Female Socket | 2 | 0.1 in | 2.54 mm | Black | Free Hanging (In-Line) | Thermoplastic | Receptacle | 12 | Crimp | Contacts Not Included | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 104482-1 | 125 °C | -65 ░C | Female Socket | 2 | 0.1 in | 2.54 mm | Black | Free Hanging (In-Line) | Thermoplastic | Receptacle | 4 | Crimp | Contacts Not Included | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 104482-9 | Female Socket | 2 | 0.1 in | 2.54 mm | Black | Free Hanging (In-Line) | Receptacle | 20 | Crimp | Contacts Not Included | 2.54 mm | 0.1 in | ||||
TE Connectivity AMP Connectors 104482-6 | 125 °C | -65 ░C | Female Socket | 2 | 0.1 in | 2.54 mm | Black | Free Hanging (In-Line) | Thermoplastic | Receptacle | 14 | Crimp | Contacts Not Included | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 104482-7 | 125 °C | -65 ░C | Female Socket | 2 | 0.1 in | 2.54 mm | Black | Free Hanging (In-Line) | Thermoplastic | Receptacle | Crimp | Contacts Not Included | 2.54 mm | 0.1 in | 16 | |
TE Connectivity AMP Connectors 104482-8 | 125 °C | -65 ░C | Female Socket | 2 | 0.1 in | 2.54 mm | Black | Free Hanging (In-Line) | Thermoplastic | Receptacle | 18 | Crimp | Contacts Not Included | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 1-104482-8 | 125 °C | -65 ░C | Female Socket | 2 | 0.1 in | 2.54 mm | Black | Free Hanging (In-Line) | Thermoplastic | Receptacle | 40 | Crimp | Contacts Not Included | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 1-104482-0 | 125 °C | -65 ░C | Female Socket | 2 | 0.1 in | 2.54 mm | Black | Free Hanging (In-Line) | Thermoplastic | Receptacle | 22 positions | Crimp | Contacts Not Included | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 1-104482-7 | 125 °C | -65 ░C | Female Socket | 2 | 0.1 in | 2.54 mm | Black | Free Hanging (In-Line) | Thermoplastic | Receptacle | 38 | Crimp | Contacts Not Included | 2.54 mm | 0.1 in |
Description
General part information
104482 Series
20 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
