09110006226

Active

HARTING

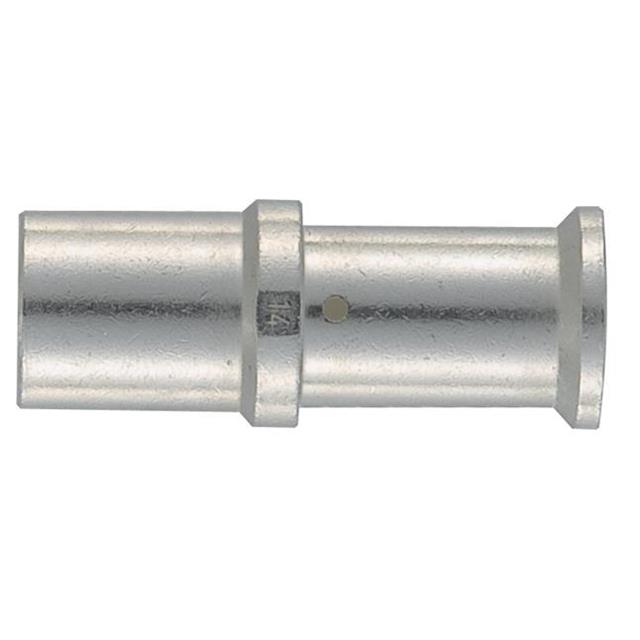

HAN HC MODULAR 250 FEMALE CRIMP CONTACT 25MM2

Search across all available documentation for this part.

Active

HARTING

HAN HC MODULAR 250 FEMALE CRIMP CONTACT 25MM2

Technical Specifications

Parameters and characteristics commom to parts in this series

70A FEMALE CRIMP CONTACT 8AWG (D=4.1MM)

...

Part	Type	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Contact Termination	Contact Finish	Wire Gauge
HARTING 09110006289
HARTING 09110006229	Machined	3 µm	118.1 µin	Socket	Crimp	Silver
HARTING 09110006161	Machined	3 µm	118.1 µin	Pin	Crimp	Silver
HARTING 09110006127	Machined	3 µm	118.1 µin	Pin	Crimp	Silver	2 AWG
HARTING 09110006637	Machined			Socket	Crimp	Silver	120 mm²
HARTING 09110006120	Machined	3 µm	118.1 µin	Pin	Crimp	Silver	3 AWG
HARTING 09110006258	Ground			Socket	Screw	Silver	120 mm²
HARTING 09110006150	Machined			Pin	Crimp	Silver	16 mm²
HARTING 09110006223	Machined	3 µm	118.1 µin	Socket	Crimp	Silver
HARTING 09110006122	Machined	3 µm	118.1 µin	Pin	Crimp	Silver	44 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Contact Crimp Socket 25mm² Silver
