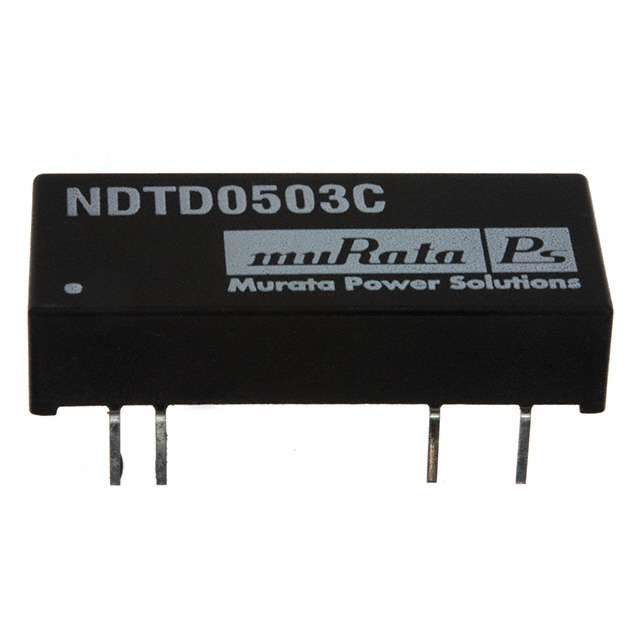

NDTD0503C

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-3.3V 3W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER +/-3.3V 3W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER +/-15V 3W

Part	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Current - Output (Max)	Current - Output (Max)	Power (Watts)	Voltage - Isolation	Mounting Type	Voltage - Output 1	Voltage - Output 2	Efficiency	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max)
Murata Power Solutions Inc. NDTD0515C	2	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Isolated Module	85 °C	-40 °C	ITE (Commercial)	100 mA	100 mA	3 W	1000 V	Through Hole	15 V	-15 V	75 %	9 V	4.5 V	24-DIP Module (600 mil, 8 Leads)
Murata Power Solutions Inc. NDTD0503C	2	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Isolated Module	85 °C	-40 °C	ITE (Commercial)	454 mA	454 mA	3 W	1000 V	Through Hole	3.3 V	-3.3 V	67 %	9 V	4.5 V	24-DIP Module (600 mil, 8 Leads)
Murata Power Solutions Inc. NDTD0512C	2	6.9 mm	0.27 "	0.58 "	14.7 mm	1.27 in	32.3 mm	Isolated Module	85 °C	-40 °C	ITE (Commercial)	125 mA		3 W	1000 V	Through Hole	12 V	-12 V	76 %	9 V	4.5 V	24-DIP Module (600 mil, 8 Leads)	125 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 3.3V -3.3V 454mA, 454mA 4.5V - 9V Input
