1W039
ActiveNTE Electronics, Inc
RES 39 OHM 2% 1W AXIAL
1W039
ActiveNTE Electronics, Inc
RES 39 OHM 2% 1W AXIAL
Description
General part information
1W039

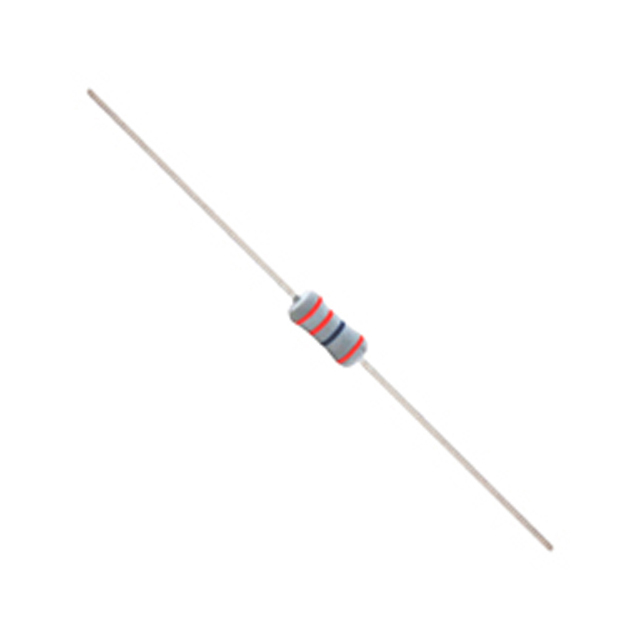

39 Ohms ±2% 1W Through Hole Resistor Axial Flame Proof, Safety Metal Oxide Film
Technical Specifications
Parameters and characteristics for this part
| Specification | 1W039 |
|---|---|
| Composition | Metal Oxide Film |
| Features | Safety, Flame Proof |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 39 Ohm |
| Size / Dimension Diameter | 0.154 in |
| Size / Dimension Length | 0.465 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 2 % |
