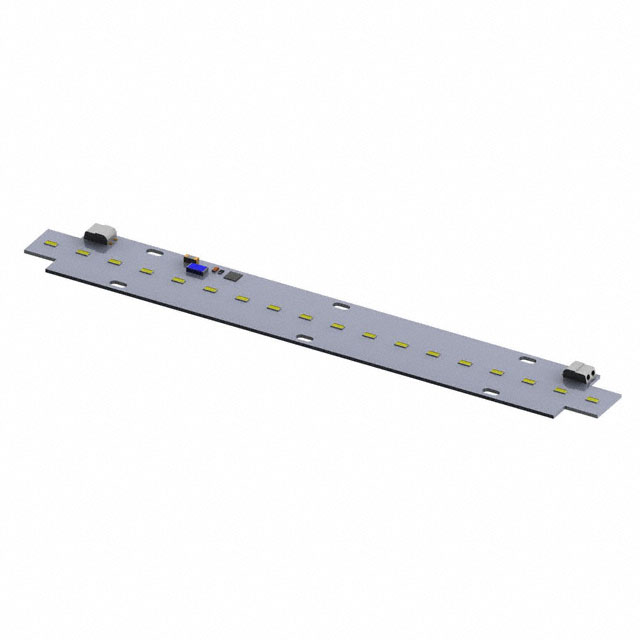

ML-010-07-0014

Active

Mag-LED Solutions

MOD 120V 11"X1.5" 6W LIN 675LM

Search across all available documentation for this part.

Active

Mag-LED Solutions

MOD 120V 11"X1.5" 6W LIN 675LM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ML-010-07-0014	ML-010 Series

Color	White, Warm	White, Warm
Configuration	Linear Light Strip	Rectangle, Round, Linear Light Strip
Features	With Connector	With Connector
Height [z]	6.12 mm	5.99 - 6.12 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	88 lm/W	85 - 90 lm/W
Luminous Flux @ Current/Temperature	630 lm	420 - 840 lm
Size / Dimension [x]	11 in	4 - 11 in
Size / Dimension [y]	39.37 mm	2 - 76.2 mm
Type	LED Engine	LED Engine
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	120 VAC	120 VAC

MOD 120V 3"X4" 8W SCONCE 900LM

Part	Viewing Angle	Color	Luminous Flux @ Current/Temperature	Type	Configuration	Voltage - Forward (Vf) (Typ)	Lens Type	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Features
Mag-LED Solutions ML-010-07-0008	120 °	Warm, White	840 lm	LED Engine	Rectangle	120 VAC	Flat	90 lm/W	76.2 mm	4 in	6.12 mm
Mag-LED Solutions ML-010-07-0026	120 °	Warm, White			Round	120 VAC
Mag-LED Solutions ML-010-07-0016	120 °	Warm, White	420 lm	LED Engine	Linear Light Strip	120 VAC	Flat	85 lm/W	2 in	11 in	6.12 mm	With Connector
Mag-LED Solutions ML-010-07-0031	120 °	Warm, White	420 lm	LED Engine	Round	120 VAC	Flat	85 lm/W			5.99 mm	With Connector
Mag-LED Solutions ML-010-07-0037	120 °	Warm, White		LED Engine	Round	120 VAC	Flat
Mag-LED Solutions ML-010-07-0009	120 °	Warm, White			Round	120 VAC
Mag-LED Solutions ML-010-07-0014	120 °	Warm, White	630 lm	LED Engine	Linear Light Strip	120 VAC	Flat	88 lm/W	39.37 mm	11 in	6.12 mm	With Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	100	$ 11.79

General part information

LED Lighting COBs Engines Modules LED Engine Magledium White, Warm Linear Light Strip
