387011578
ActiveLaird Thermal Systems, Inc.
AAX,260,24,55,00,XX
387011578
ActiveLaird Thermal Systems, Inc.
AAX,260,24,55,00,XX
Description
General part information
387011578

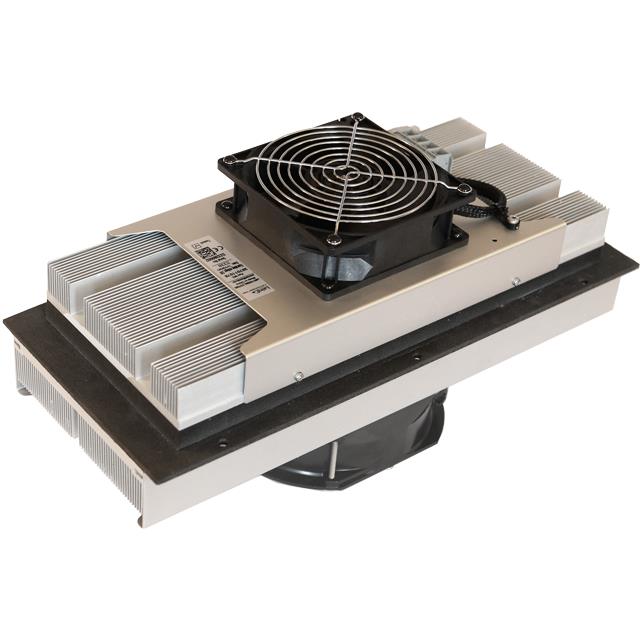

Air to Air Thermoelectric Assembly 260 W
Technical Specifications
Parameters and characteristics for this part
| Specification | 387011578 |
|---|---|
| Current | 12.7 A |
| Dimensions - Overall Height | 202 mm |
| Dimensions - Overall Length | 400 mm |
| Dimensions - Overall Width | 153 mm |
| Fan Location | Warm Side, Cold Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -40 °C |
| Power - Cooling | 260 W |
| Power - Input | 264 W |
| Voltage | 24 V |
