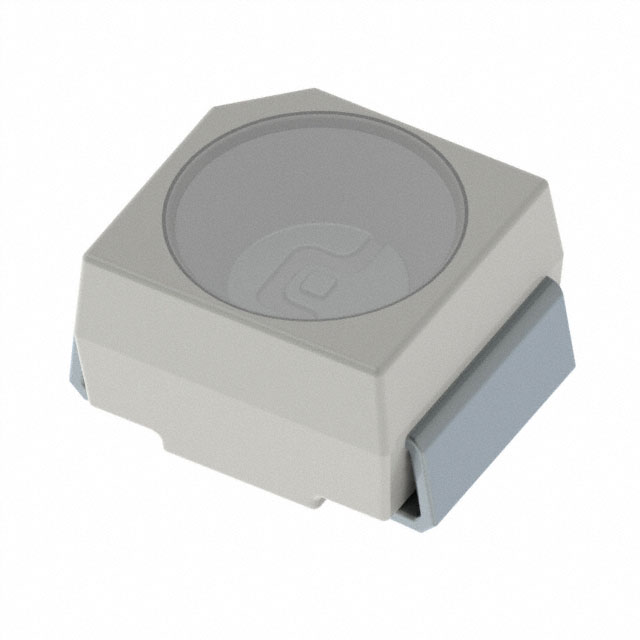

IN-P32ATR

Active

Inolux

LED RED CLEAR 2PLCC SMD

Search across all available documentation for this part.

Active

Inolux

LED RED CLEAR 2PLCC SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED RED CLEAR 2PLCC SMD

Part	Mounting Type	Millicandela Rating	Supplier Device Package	Lens Transparency	Viewing Angle	Current - Test	Lens Size [diameter]	Lens Color	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Color	Height (Max) [Max]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Configuration	Wavelength - Peak [custom]	Wavelength - Peak [custom]
Inolux IN-P32ATR	Surface Mount	285 mcd	2-PLCC	Clear	120 °	20 mA	2.4 mm	Colorless	2-PLCC	2.8 mm	3.2 mm	Red	1.9 mm	622 nm	2 V	Standard
Inolux IN-P32DATRG	Surface Mount	285 mcd, 1400 mcd	4-PLCC	Clear	120 °	20 mA, 20 mA		Colorless	4-PLCC	2.8 mm	3.2 mm	Green, Red	1.9 mm	522 nm, 622 nm	2.2 V, 3.2 V	Independent	630 nm	530 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red 622nm LED Indication - Discrete 2V 2-PLCC
