9538 060100

Active

Belden Inc.

MULTICONDUCTOR CABLE, COMPUTER, EIA RS-232, SHIELDED, 8 CONDUCTOR, 24 AWG, 100 FT, 30.5 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

9538 060100

Active

Belden Inc.

MULTICONDUCTOR CABLE, COMPUTER, EIA RS-232, SHIELDED, 8 CONDUCTOR, 24 AWG, 100 FT, 30.5 M

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9538 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.69 mm
Jacket (Insulation) Diameter [diameter]	0.224 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Wire Gauge	24 AWG

9538 Series

Part	Voltage	Shield Type	Ratings	Shield Coverage	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Features	Wire Gauge	Jacket (Insulation) Material	Usage	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Jacket Color	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Length [x]	Length [x]
Belden Inc. 9538 0601000	300 V	Foil	UL Style 2464	100 %	Poly-Vinyl Chloride (PVC)	32 AWG	7	Multi-Conductor	Drain Wire	24 AWG	Poly-Vinyl Chloride (PVC)	Computer	8	5.69 mm	0.224 in	1000 ft	304.8 m	Chrome	Copper Tinned	-30 ░C	80 C	Aluminum
Belden Inc. 9538 060100		Foil		100 %	Poly-Vinyl Chloride (PVC)	32 AWG	7	Multi-Conductor	Drain Wire	24 AWG	Poly-Vinyl Chloride (PVC)	Computer	8	5.69 mm	0.224 in			Chrome	Copper Tinned	-30 ░C	80 C	Aluminum	30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 3.32
		200	$ 3.16
		300	$ 3.06
		500	$ 2.95
		700	$ 2.88
		1000	$ 2.80
		2500	$ 2.62
Newark	Spool of 100	1	$ 369.48
		5	$ 355.19
		10	$ 342.94

Description

General part information

9538 Series

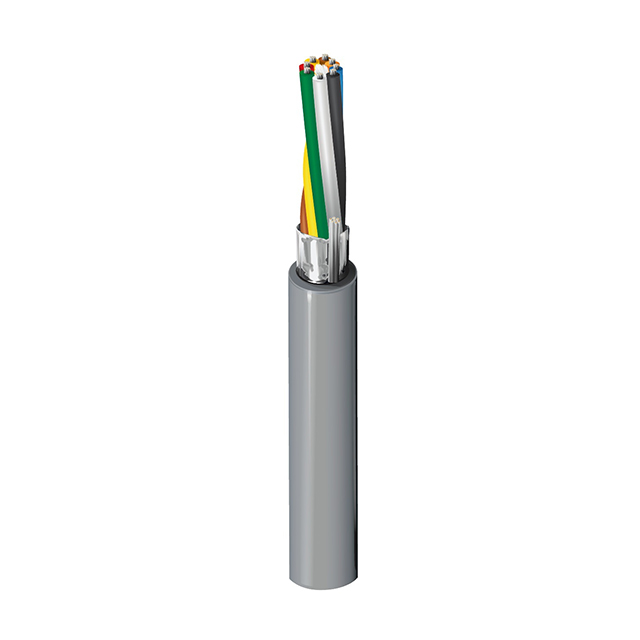

The 9538 060100 is a 100ft 8-conductor shielded Computer Cable with 24AWG stranded (7 x 32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® aluminum foil-polyester tape shield (100% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. This computer cable is designed for EIA RS-232 applications.
