628-W09-322-012

Active

EDAC Inc.

628W (WATERPROOF) SERIES VERTICA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

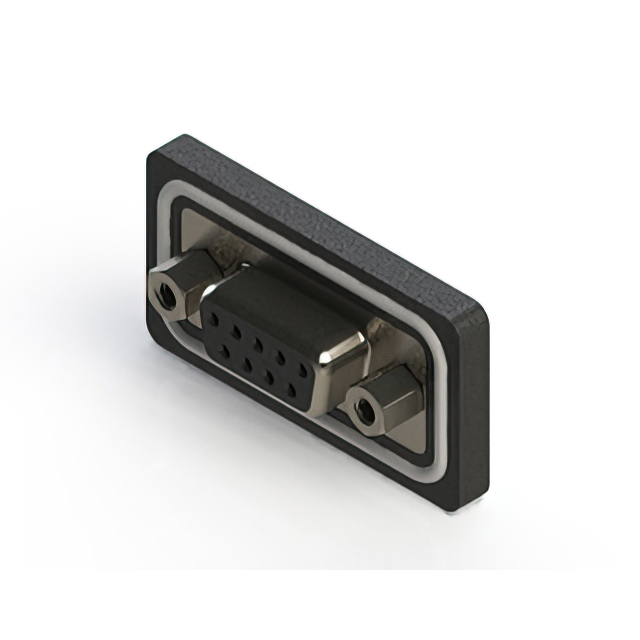

628-W09-322-012

Active

EDAC Inc.

628W (WATERPROOF) SERIES VERTICA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-W09-322-012

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1

628-W09 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Number of Positions	Connector Type	Number of Rows	Ingress Protection	Material Flammability Rating	Dielectric Material	Shell Material, Finish	Current Rating (Amps)	Contact Finish	Mounting Type	Contact Material	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Contact Finish Thickness
EDAC Inc. 628-W09-321-012	-25 °C	85 °C	Black	D-Sub	15 µin	0.38 µm	4-40	9	Receptacle Female Sockets	2	IP67 - Dust Tight Waterproof	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	5 A	Gold	Through Hole	Copper Alloy	Signal and Power	DE E	1	Solder
EDAC Inc. 628-W09-220-013	-25 °C	85 °C	Black	D-Sub			Female Screwlock (4-40) Mating Side		Receptacle Female Sockets	2	IP67 - Dust Tight Waterproof	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	5 A	Gold	Panel Mount Through Hole	Copper Alloy	Signal and Power	DE E	1	Solder	Flash
EDAC Inc. 628-W09-221-012	-25 °C	85 °C	Black	D-Sub			4-40	9	Receptacle Female Sockets	2	IP67 - Dust Tight Waterproof	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	5 A	Gold	Through Hole	Copper Alloy	Signal and Power	DE E	1	Solder	Flash
EDAC Inc. 628-W09-222-012	-25 °C	85 °C	Black	D-Sub			Female Screwlock (4-40) Mating Side		Receptacle Female Sockets	2	IP67 - Dust Tight Waterproof	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	5 A	Gold	Free Hanging (In-Line)	Copper Alloy	Signal and Power	DE E	1		Flash
EDAC Inc. 628-W09-322-012	-25 °C	85 °C	Black	D-Sub	15 µin	0.38 µm	4-40	9	Receptacle Female Sockets	2	IP67 - Dust Tight Waterproof	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	5 A	Gold	Free Hanging (In-Line)	Copper Alloy	Signal and Power	DE E	1
EDAC Inc. 628-W09-220-012	-25 °C	85 °C	Black	D-Sub			Female Screwlock (4-40) Mating Side		Receptacle Female Sockets	2	IP67 - Dust Tight Waterproof	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	Nickel Plated Steel	5 A	Gold	Panel Mount Through Hole	Copper Alloy	Signal and Power	DE E	1	Solder	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 10.62

Description

General part information

628-W09 Series

9 Position D-Sub Receptacle, Female Sockets Connector
