9912 002100

Active

Belden Inc.

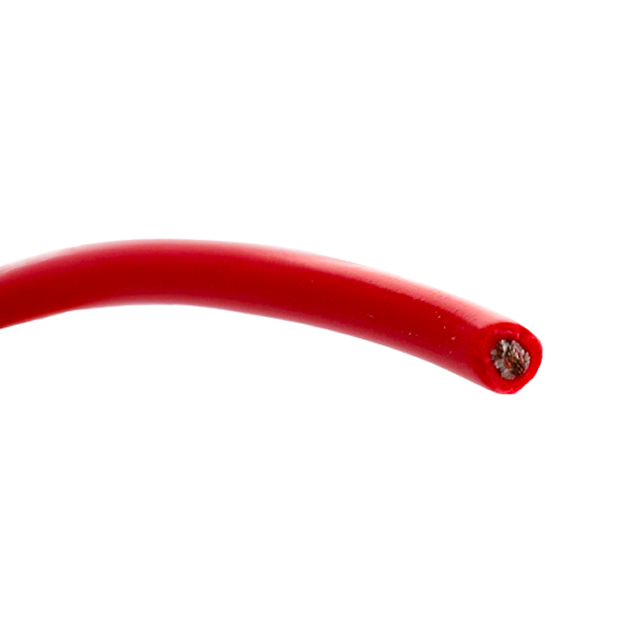

HOOK-UP STRND 12AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP STRND 12AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	9912 002100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Jacket (Insulation) Diameter [diameter]	4.01 mm
Jacket (Insulation) Diameter [diameter]	0.158 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Red
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Voltage	600 V
Wire Gauge	12 AWG

Part	Jacket Color	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Wire Gauge	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Length [x]	Length [x]
Belden Inc. 9912 004250	Yellow	600 V	4.01 mm	0.158 in	Copper Tinned	12 AWG	3000 "	76.2 m	-25 °C	105 ░C	Poly-Vinyl Chloride (PVC)	0.76 mm	0.762 mm	30 AWG	65	Hook-Up
Belden Inc. 9912 002100	Red	600 V	4.01 mm	0.158 in	Copper Tinned	12 AWG			-25 °C	105 ░C	Poly-Vinyl Chloride (PVC)			30 AWG	65	Hook-Up	30.5 m	100 ft
Belden Inc. 9912 0052000	Green	600 V	4.01 mm	0.158 in	Copper Tinned	12 AWG			-25 °C	105 ░C	Poly-Vinyl Chloride (PVC)	0.76 mm	0.762 mm	30 AWG	65	Hook-Up	609.6 m	2000 ft
Belden Inc. 9912 009250		600 V	4.01 mm	0.158 in	Copper Tinned	12 AWG	3000 "	76.2 m	-25 °C	105 ░C	Poly-Vinyl Chloride (PVC)	0.76 mm	0.762 mm	30 AWG	65	Hook-Up
Belden Inc. 9912 013100	Blue	600 V	4.01 mm	0.158 in	Copper Tinned	12 AWG			-25 °C	105 ░C	Poly-Vinyl Chloride (PVC)	0.76 mm	0.762 mm	30 AWG	65	Hook-Up	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 AWG Hook-Up Wire 65/30 Red 600V 100.0' (30.5m)
