GRSN-5021-1601
ActiveCW Industries

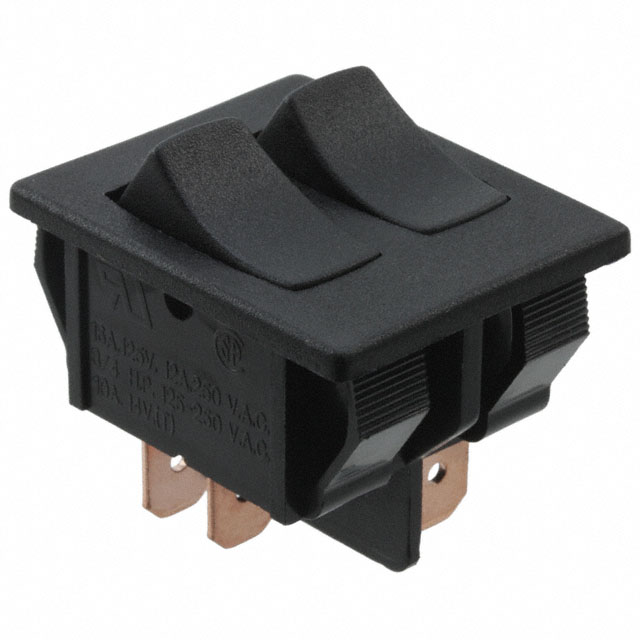

SWITCH ROCKER SPST/SPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GRSN-5021-1601
ActiveCW Industries
SWITCH ROCKER SPST/SPDT 16A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRSN-5021-1601 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved), Dual |
| Circuit | SPDT + SPST-NC |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [x] | 28.58 mm |
| Panel Cutout Dimensions [y] | 25.4 mm |
| Switch Function | On-On, On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 3.19 | |
Description
General part information
GRSN-5021 Series
Rocker Switch SPDT + SPST-NC 16A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
