59022-3-S-02-E
ObsoleteLITTELFUSE
SENSOR REED SW SPDT WIRE LEADS
59022-3-S-02-E
ObsoleteLITTELFUSE
SENSOR REED SW SPDT WIRE LEADS
Description
General part information
59022-3-S-02-E

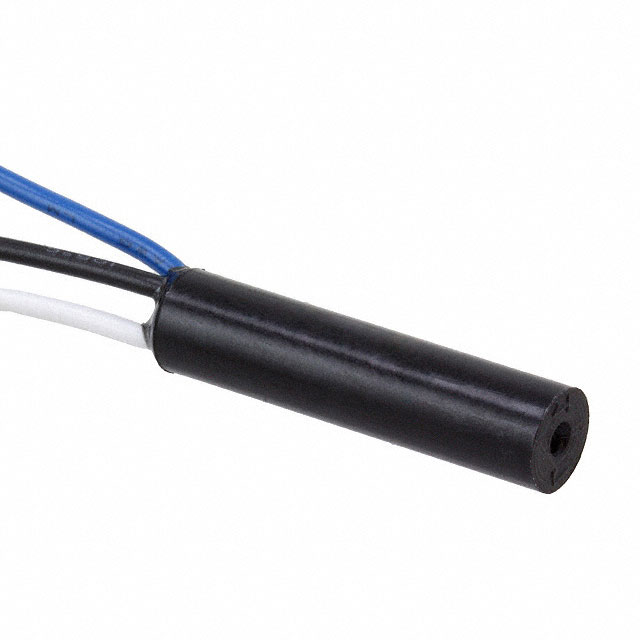

Magnetic Reed Switch Magnet SPDT Wire Leads with Connector Barrel (Plastic Housed), Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | 59022-3-S-02-E |
|---|---|
| Actuator Material | Magnet |
| Must Operate (Length) | 9.3 mm |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | SPDT |
| Package / Case | Wire Leads, Barrel (Plastic Housed) |
| Termination Style | Wire Leads with Connector |
| Type | Reed Switch |
