A6E-0101-N

Active

Omron Electronics Inc-EMC Div

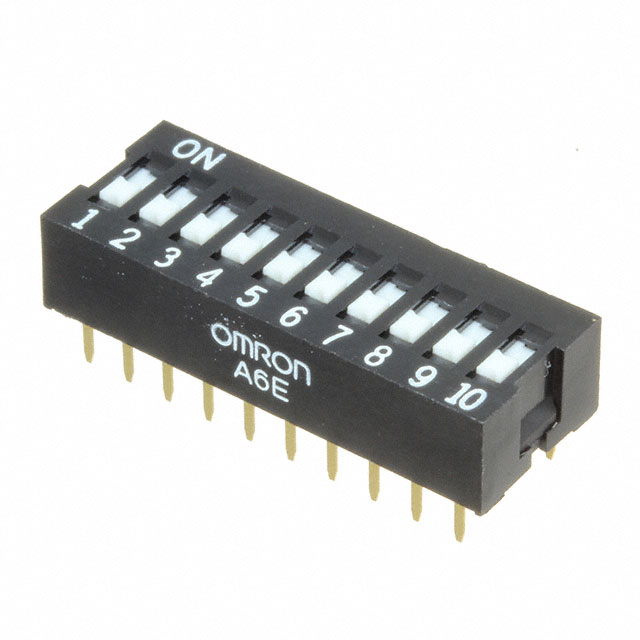

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6E-0101-N	A6E Series

Actuator Level	Flush, Recessed	Flush, Recessed, Raised
Actuator Type	Slide (Standard)	Slide (Standard)
Circuit	SPST	SPST
Contact Finish	Gold	Gold
Current Rating (Amps)	25 mA	25 mA
Electrical Life	1000 Cycles	1000 Cycles
Height Above Board	0.23 in	0.23 - 0.277 in
Height Above Board	5.85 mm	5.85 - 7.05 mm
Length	-	0.254 - 0.554 "
Length	-	6.44 - 14.06 mm
Length [x]	26.76 mm	16.61 - 26.76 mm
Length [x]	1.054 in	0.654 - 1.054 in
Mechanical Life	1000 Cycles	1000 Cycles
Mounting Type	Through Hole	Through Hole
Number of Positions	10	2 - 10
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	24 VDC	24 VDC
Washable	False	False

A6E Series

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Voltage Rating	Circuit	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Termination Style	Mounting Type	Actuator Type	Height Above Board	Height Above Board	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Mechanical Life	Actuator Level	Length [x]	Length [x]	Length	Length
Omron Electronics Inc-EMC Div A6E-0101-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	10	PC Pin	Through Hole	Slide (Standard)	0.23 in	5.85 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Flush, Recessed	26.76 mm	1.054 in
Omron Electronics Inc-EMC Div A6E-6101-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	6	PC Pin	Through Hole	Slide (Standard)	0.23 in	5.85 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Flush, Recessed	16.61 mm	0.654 in
Omron Electronics Inc-EMC Div A6E-7101-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	7	PC Pin	Through Hole	Slide (Standard)	0.23 in	5.85 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Flush, Recessed
Omron Electronics Inc-EMC Div A6E-0104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	10	PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised	26.76 mm	1.054 in
Omron Electronics Inc-EMC Div A6E-8101-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	8	PC Pin	Through Hole	Slide (Standard)	0.23 in	5.85 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Flush, Recessed
Omron Electronics Inc-EMC Div A6E-6104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	6	PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised	16.61 mm	0.654 in
Omron Electronics Inc-EMC Div A6E-5104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA		PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised			0.554 "	14.06 mm
Omron Electronics Inc-EMC Div A6E-2104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	2	PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised			0.254 in	6.44 mm
Omron Electronics Inc-EMC Div A6E-3104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA		PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised			0.354 in	8.99 mm
Omron Electronics Inc-EMC Div A6E-9104-N	24 VDC	SPST	1000 Cycles	-20 C	70 °C	25 mA	9	PC Pin	Through Hole	Slide (Standard)	0.277 in	7.05 mm	0.1 in	Full	2.54 mm	Gold	1000 Cycles	Raised	24.23 mm	0.954 "
