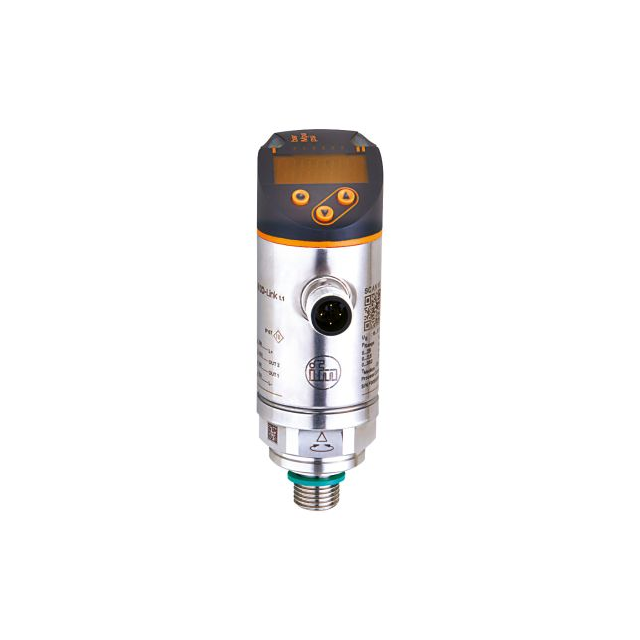

PN7594
Activeifm efector, inc.
SWITCH 145.04PSI PNP- NC/NO 1/4"
PN7594
Activeifm efector, inc.
SWITCH 145.04PSI PNP- NC/NO 1/4"
Description
General part information
PN7594
Pressure Sensor -14.5PSI ~ 145.04PSI (-100kPa ~ 1000kPa) Switch Male - 1/4" (6.35mm) BSPP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | PN7594 |
|---|---|
| Accuracy | 0.5 % RH |
| Maximum Pressure | 2175.57 PSI |
| Operating Pressure (Max) | 145.04 PSI |
| Operating Pressure (Min) | -14.5 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP- NC, NO |
| Package / Case | Module |
| Pin Count | 4 |
| Port Diameter | 0.25 " |
| Port Feature | BSPP |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Switch |
| Termination Style | M12 |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 18 VAC |
