041616080
ActiveRose Enclosures
BOX ALUM GRAY 6.3"L X 6.3"W
041616080
ActiveRose Enclosures
BOX ALUM GRAY 6.3"L X 6.3"W
Description
General part information
041616080

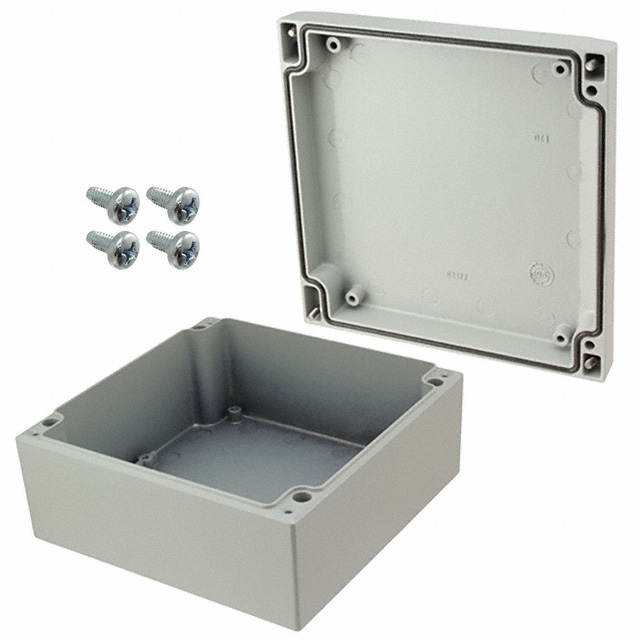

Box Metal, Aluminum Gray Cover Included 6.299" L x 6.299" W (160.00mm x 160.00mm) X 3.189" (81.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 041616080 |
|---|---|
| Area (L x W) | 39.7 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight, PCB Supports |
| Height | 3.189 in |
| Material | Metal, Aluminum |
| Ratings | UL-508, NEMA 1, 2, 4X, IP66, 4 |
| Size / Dimension Length | 6.299 in |
| Size / Dimension Width | 6.299 in |
| Thickness | 0.118 in |
| Weight | 2.5 lbs |
