Description
General part information

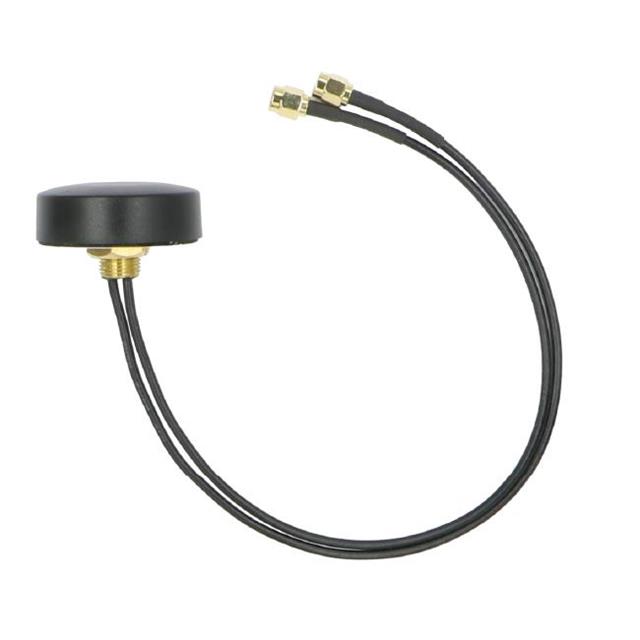

YEWN004AA
RF ANTENNA GNSS, Wi-Fi Dome SMA Male Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | YEWN004AA |
|---|---|
| Antenna Type | Dome |
| Applications | Wi-Fi, GNSS |
| Frequency (Band) | 5.5 GHz |
| Frequency (Center) | 2.45 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 6 GHz |
| Frequency Range (Band 2) Minimum | 5 GHz |
| Gain | 5.2 dBi |
| Height (Max) | 0.591 in |
| Ingress Protection | IP66 |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Termination Type | SMA Male |
| VSWR | 3 |
