MMF404949
ActiveMicro-Measurements (Division of Vishay Precision Group)

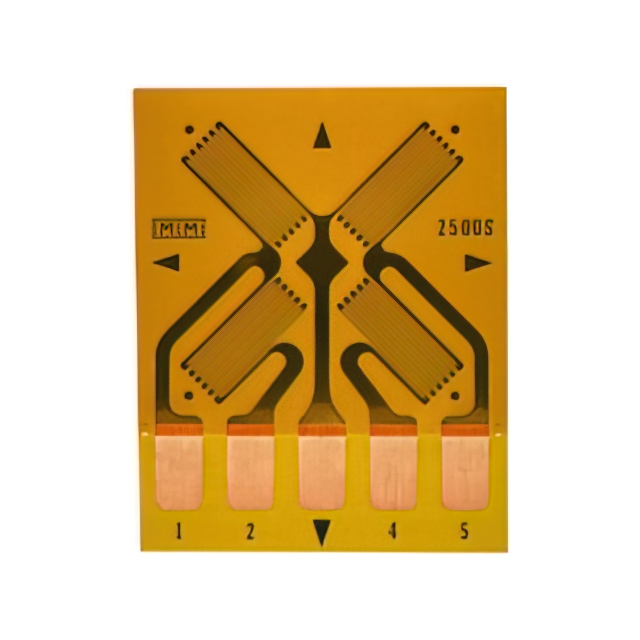

CEA-03-250USA-350 - STRAIN GAGES
MMF404949
ActiveMicro-Measurements (Division of Vishay Precision Group)
CEA-03-250USA-350 - STRAIN GAGES
Description
General part information
MMF404949
Shear/Torque Strain Gauge ±5% 0.250" (6.35mm) 0.120" (3.05mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF404949 |
|---|---|
| Length - Active | 0.25 in |
| Length - Overall | 0.96 in |
| Length - Overall Pattern | 0.82 in |
| Length - Overall Pattern (mm) | 20.83 mm |
| Operating Temperature (Max) | 347 °F |
| Operating Temperature (Min) | -103 °F |
| Pattern Type | Torque, Shear |
| Resistance | 350 Ohm |
| Resistance Tolerance (%) | 0.4 % |
| Strain Range | 5 % |
| Width - Active | 0.12 in |
| Width - Overall | 0.8 in |
| Width - Overall Pattern | 0.7 in |
