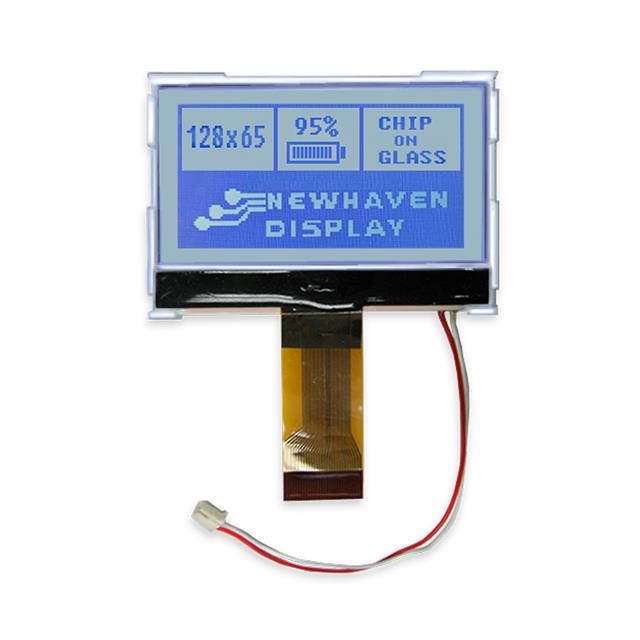

NHD-C12865BR-FSW-GBW

Active

Newhaven Display Intl

LCD COG GRAPH 128X65 WH TRANSFL

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD COG GRAPH 128X65 WH TRANSFL

Technical Specifications

Parameters and characteristics for this part

Part	Dot Size [custom]	Dot Size [custom]	Background Color	Interface	Backlight	Graphics Color	Dot Pixels [x]	Dot Pixels [y]	Display Type	Display Mode	Viewing Area [y]	Viewing Area [x]	Dot Size [y]	Dot Size [z]	Controller Type	Dot Pitch [y]	Dot Pitch [x]
Newhaven Display Intl NHD-C12865AZ-RN-GBW	0.35 mm	0.35 mm	Green	Parallel/Serial	Without Backlight	Gray	128	65	STN - Super-Twisted Nematic	Reflective	27 mm	52.6 mm
Newhaven Display Intl NHD-C12865BR-FSW-GBW			Gray	Parallel/Serial	LED - White	Blue	128	65	STN - Super-Twisted Nematic	Transflective	34.5 mm	60.1 mm	0.4 mm	0.46 mm	ST7565R	0.49 mm	0.44 mm
Newhaven Display Intl NHD-C12865AR-FSW-GBW	0.35 mm	0.35 mm	Gray	Parallel/Serial	LED - White	Blue	128	65	STN - Super-Twisted Nematic	Transflective	27 mm	52.6 mm			ST7565R

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	3000	$ 14.60

General part information

Graphic LCD Display Module Transflective Blue (Gray - Inverted) STN - Super-Twisted Nematic Parallel/Serial 128 x 65
