EKY-630ELL331MK20S

Active

Chemi-Con

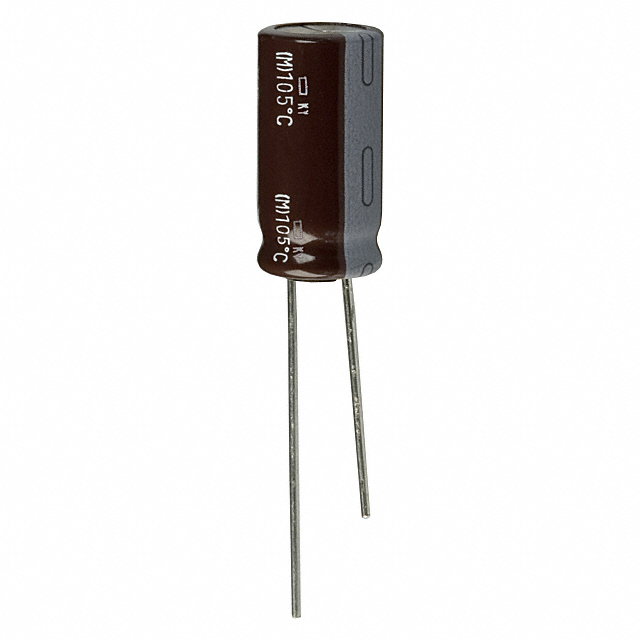

CAP ALUM 330UF 20% 63V RADIAL TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-630ELL331MK20S

Active

Chemi-Con

CAP ALUM 330UF 20% 63V RADIAL TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKY-630ELL331MK20S	EKY-630E Series

Applications	General Purpose	General Purpose
Capacitance	330 µF	15 - 680 ÁF
Height - Seated (Max)	-	41.5 mm
Height - Seated (Max)	-	1.043 in
Height - Seated (Max)	-	26.5 mm
Height - Seated (Max)	-	14 mm
Height - Seated (Max) [Max]	21.5 mm	1.634 - 31.5 mm
Height - Seated (Max) [Max]	0.846 in	0.492 - 1.24 in
Impedance	-	21 - 880 mOhms
Lead Spacing	5 mm	2 - 7.5 mm
Lead Spacing	0.197 in	0.079 - 0.295 in
Lifetime @ Temp.	-	5000 - 10000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	-	1.35 - 690 mA
Ripple Current @ Low Frequency	-	1 - 750 mA
Size / Dimension [diameter]	0.492 in	0.197 - 0.709 in
Size / Dimension [diameter]	12.5 mm	5 - 18 mm
Tolerance	20 %	20 %
Voltage - Rated	63 V	63 V

EKY-630E Series

CAP ALUM 33UF 20% 63V RADIAL TH

Part	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Impedance	Capacitance	Applications	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Polarization	Tolerance	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Package / Case	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Chemi-Con EKY-630ETD330MF11D	Through Hole	0.492 in	12.5 mm	350 mOhms	33 ÁF	General Purpose	265 mA	0.248 in	6.3 mm	0.098 in	2.5 mm	Polar	20 %	5000 Hrs	-40 °C	105 ░C	63 V	Radial, Can	106 mA, 120 Hz
Chemi-Con EKY-630ELL681MK40S	Through Hole		1.634 "	21 mOhms	680 µF	General Purpose	2.8 A	0.492 in	12.5 mm	0.197 in	5 mm	Polar	20 %	10000 Hrs	-40 °C	105 ░C	63 V	Radial, Can	1.68 A	41.5 mm
Chemi-Con EKY-630ELL221MJ25S	Through Hole			46 mOhms	220 µF	General Purpose	1.35 A	0.394 in	10 mm	0.197 in	5 mm	Polar	20 %	7000 Hrs	-40 °C	105 ░C	63 V	Radial, Can	675 mA		1.043 in	26.5 mm
Chemi-Con EKY-630ELL820MJC5S	Through Hole	0.551 "		110 mOhms	82 µF	General Purpose	690 mA	0.394 in	10 mm	0.197 in	5 mm	Polar	20 %	7000 Hrs	-40 °C	105 ░C	63 V	Radial, Can	276 mA				14 mm
Chemi-Con EKY-630ELL150ME11D	Through Hole	0.492 in	12.5 mm	880 mOhms	15 µF	General Purpose	165 mA	0.197 "	5 mm	0.079 in	2 mm	Polar	20 %	5000 Hrs	-40 °C	105 ░C	63 V	Radial, Can	66 mA
Chemi-Con EKY-630ELL331MK20S	Through Hole	0.846 in	21.5 mm		330 µF	General Purpose		0.492 in	12.5 mm	0.197 in	5 mm	Polar	20 %		-40 °C	105 ░C	63 V	Radial, Can
Chemi-Con EKY-630ELL271MK20S	Through Hole	0.846 in	21.5 mm	41 mOhms	270 µF	General Purpose	1.5 A	0.492 in	12.5 mm	0.197 in	5 mm	Polar	20 %	10000 Hrs	-40 °C	105 ░C	63 V	Radial, Can	750 mA
Chemi-Con EKY-630ELL681MM20S	Through Hole	0.846 in	21.5 mm	30 mOhms	680 µF	General Purpose	2.5 A	0.709 "	18 mm	0.295 in	7.5 mm	Polar	20 %	10000 Hrs	-40 °C	105 ░C	63 V	Radial, Can	1.5 A
Chemi-Con EKY-630ELL681ML25S	Through Hole			25 mOhms	680 µF	General Purpose	2.6 A	0.63 in	16 mm	0.295 in	7.5 mm	Polar	20 %	10000 Hrs	-40 °C	105 ░C	63 V	Radial, Can	1.56 A		1.043 in	26.5 mm
Chemi-Con EKY-630ELL471MK30S	Through Hole	1.24 in	31.5 mm	28 mOhms	470 µF	General Purpose	2.3 A	0.492 in	12.5 mm	0.197 in	5 mm	Polar	20 %	10000 Hrs	-40 °C	105 ░C	63 V	Radial, Can	1.15 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.07
		10	$ 0.80
		50	$ 0.73
		100	$ 0.60
		500	$ 0.48
		1000	$ 0.42
		3000	$ 0.39
		5000	$ 0.38

Description

General part information

EKY-630E Series

330 µF 63 V Aluminum Electrolytic Capacitors Radial, Can
