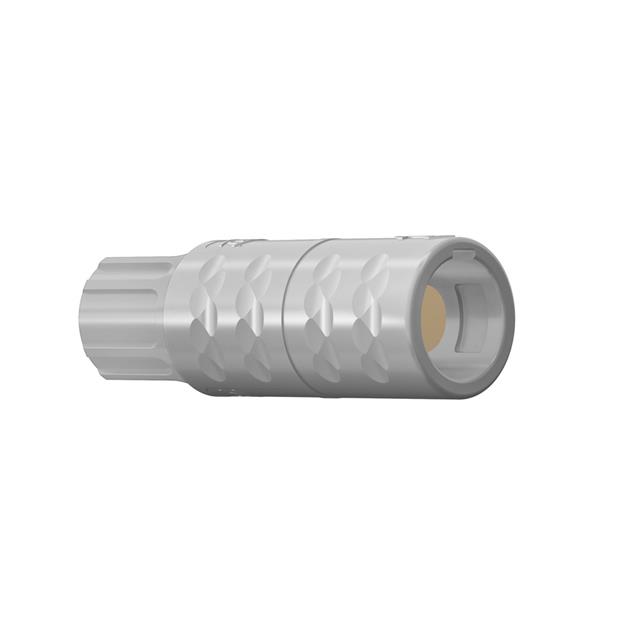

K11M07-P06LFD0-3970
ActiveODU
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K11M07-P06LFD0-3970
ActiveODU
CONN RCPT FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K11M07-P06LFD0-3970 |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Backshell Material, Plating | Polysulfone (PSU) |
| Cable Opening [Max] [diameter] | 0.154 in |
| Cable Opening [Max] [diameter] | 3.9 mm |
| Cable Opening [Min] [diameter] | 2.7 mm |
| Cable Opening [Min] [diameter] | 0.106 in |
| Color | Gray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 4.55 A |
| Fastening Type | Detent Lock, Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | 0 |
| Primary Material | Plastic |
| Shell Material | Polysulfone (PSU) |
| Shell Size - Insert | 1 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.29 | |
| 10 | $ 21.27 | |||
| 25 | $ 20.35 | |||
| 50 | $ 19.70 | |||
| 100 | $ 19.04 | |||
| 250 | $ 17.99 | |||
| 500 | $ 17.46 | |||
Description
General part information
K11M07-P06LFD0-3970
6 Position Circular Connector Receptacle, Female Sockets Solder Cup
