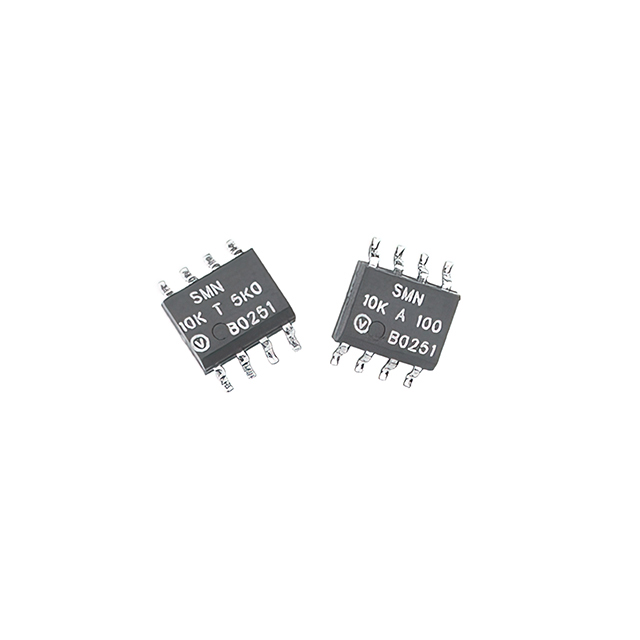

Specification	Y1365V0881QT9W

Applications	Military
Circuit Type	Isolated
Height - Seated (Max)	0.073 in
Mounting Type	Surface Mount
Number of Pins	8
Number of Resistors	4
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package Length	0.154 in
Package Name	8-SOIC
Package Width	3.9 mm
Power Per Element	100 mW
Resistance	5 kOhm, 2.5 kOhm
Resistor Matching Ratio (Tolerance)	0.01 %
Resistor Ratio Drift	0.5 ppm/°C
Size / Dimension Length	0.197 in
Size / Dimension Width	0.157 in
Temperature Coefficient	2 ppm/°C
Tolerance	0.02 %
