925553-1

Active

TE Connectivity AMP Connectors

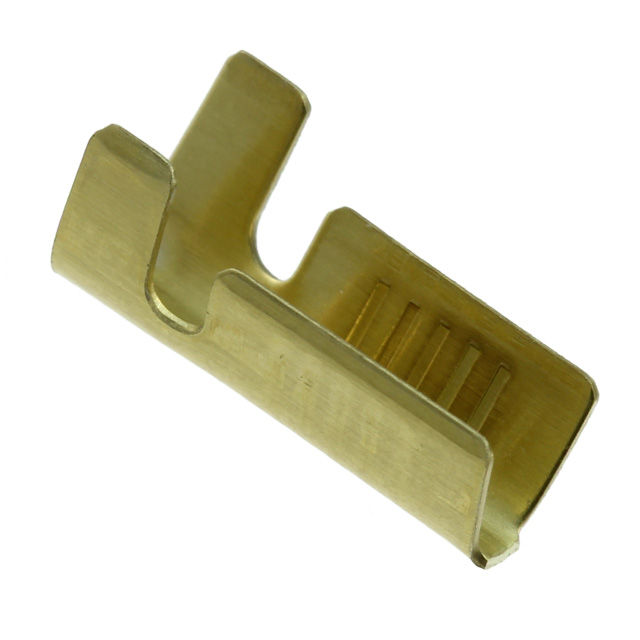

CONN TERM WTB 13.5-17AWG

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN TERM WTB 13.5-17AWG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	925553-1	925553 Series

Contact Finish	-	Copper
Contact Material	Brass	Tin, Brass
Hole Diameter [diameter]	2.69 mm	2.69 mm
Hole Diameter [diameter]	0.106 in	0.106 in
Insulation Diameter [Max] [diameter]	3.81 mm	3.81 mm
Insulation Diameter [Max] [diameter]	0.15 "	0.15 "
Insulation Diameter [Min] [diameter]	2.5 mm	2.5 mm
Insulation Diameter [Min] [diameter]	0.098 in	0.098 in
Terminal Type	Through Board	Through Board
Wire Gauge [Max]	17 AWG	17 AWG
Wire Gauge [Min]	14 AWG	14 AWG

CONN TERM WTB 13.5-17AWG COPPER

Part	Hole Diameter [diameter]	Hole Diameter [diameter]	Terminal Type	Contact Material	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish
TE Connectivity AMP Connectors 1-925553-0	2.69 mm	0.106 in	Through Board	Tin	3.81 mm	2.5 mm	0.098 in	0.15 "	14 AWG	17 AWG	Copper
TE Connectivity AMP Connectors 925553-1	2.69 mm	0.106 in	Through Board	Brass	3.81 mm	2.5 mm	0.098 in	0.15 "	14 AWG	17 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

WTB Terminal Connector 13.5-17 AWG
