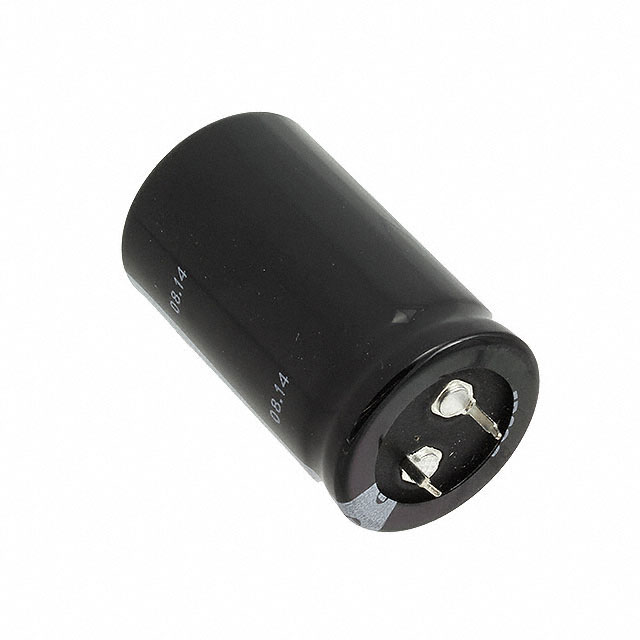

B41231A9478M002
ActiveEPCOS - TDK Electronics
CAP ALUM 4700UF 20% 100V SNAP TH
B41231A9478M002
ActiveEPCOS - TDK Electronics
CAP ALUM 4700UF 20% 100V SNAP TH
Description
General part information
B41231A9478M002
4700 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 3 Lead 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B41231A9478M002 |
|---|---|
| Applications | General Purpose |
| Capacitance | 4700 µF |
| Height - Seated (Max) | 2.047 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 3 Leads |
| Package Name | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current | 5.86 A |
| Size / Dimension Diameter | 1.181 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
