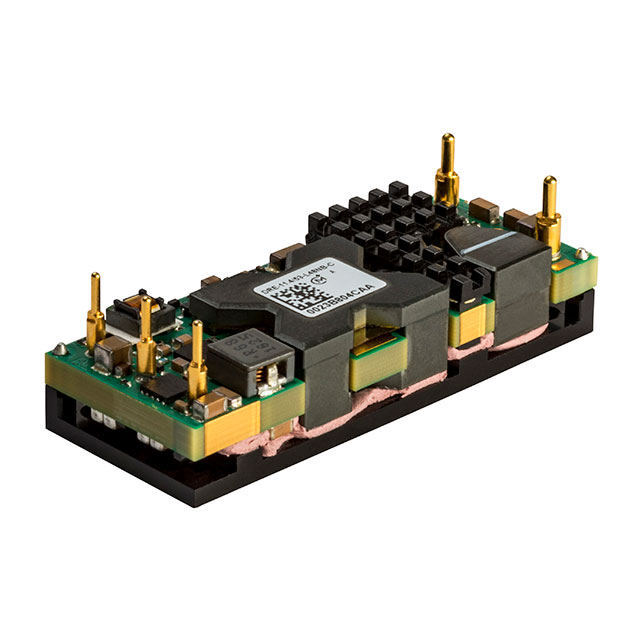

DRE-11.4/53-L48NBS-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 11.4V 604W
Deep-Dive with AI
Search across all available documentation for this part.
DRE-11.4/53-L48NBS-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 11.4V 604W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DRE-11.4/53-L48NBS-C |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 53 A |
| Efficiency | 95.5 % |
| Features | Load Sharing, Baseplate, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Eighth Brick |
| Power (Watts) | 604 W |
| Size / Dimension [x] | 2.3 in |
| Size / Dimension [x] | 58.4 mm |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [z] | 0.57 " |
| Size / Dimension [z] | 14.5 mm |
| Supplier Device Package | Eighth Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 11.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 42 | $ 91.38 | |
DRE-11.4.53 Series
DC DC CONVERTER 11.4V 604W
| Part | Supplier Device Package | Efficiency | Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Voltage - Isolation | Voltage - Input (Max) [Max] | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Applications | Voltage - Input (Min) [Min] | Voltage - Output 1 | Current - Output (Max) [Max] | Power (Watts) | Features | Control Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DRE-11.4/53-L48NBS-C | Eighth Brick | 95.5 % | Isolated Module | 85 °C | -40 °C | 1 | 2250 VDC | 60 V | Eighth Brick | 2.3 in | 58.4 mm | 22.9 mm | 0.57 " | 14.5 mm | 0.9 " | ITE (Commercial) | 36 V | 11.4 V | 53 A | 604 W | Baseplate, Load Sharing, Remote On/Off | Active Low, Enable | Through Hole |
Description
General part information
DRE-11.4.53 Series
Isolated Module DC DC Converter 1 Output 11.4V 53A 36V - 60V Input
