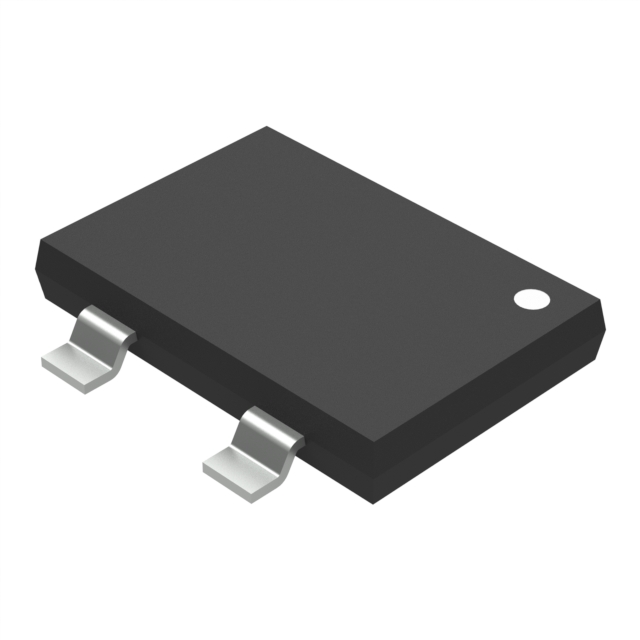

TT3M

Obsolete

Diodes Inc

3A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Search across all available documentation for this part.

Obsolete

Diodes Inc

3A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	TT3M

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	TT
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

3A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Part	Voltage - Forward (Vf) (Max) @ If	Diode Type	Technology	Supplier Device Package	Package / Case	Mounting Type	Voltage - Peak Reverse (Max) [Max]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]
Diodes Inc TT3M	1 V	Single Phase	Standard	TT	4-SMD Gull Wing	Surface Mount	1000 V	5 µA	3 A	-55 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
