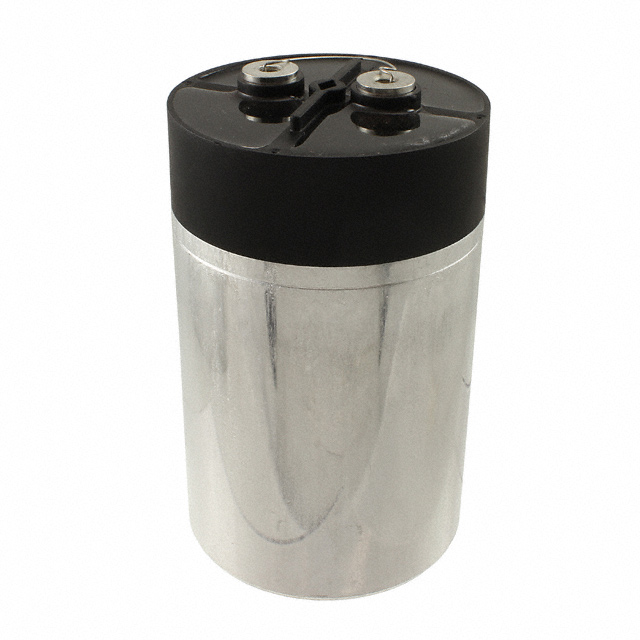

Specification	947D501K102AHGSN

Applications	DC Filtering, DC Link
Capacitance	500 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	2.5 mOhm
Height - Seated (Max)	5.394 in
Lead Spacing	1.26 in
Mounting Type	Chassis, Stud Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-45 °C
Package / Case	Can, Radial
Size / Dimension Diameter	3.346 in
Termination	Threaded, Female
Tolerance	10 %
Voltage Rating - AC	230 V
Voltage Rating - DC	1 kV
