SCP7RTJ5HEL1RLQF6E

Active

Samsung Semiconductor, Inc.

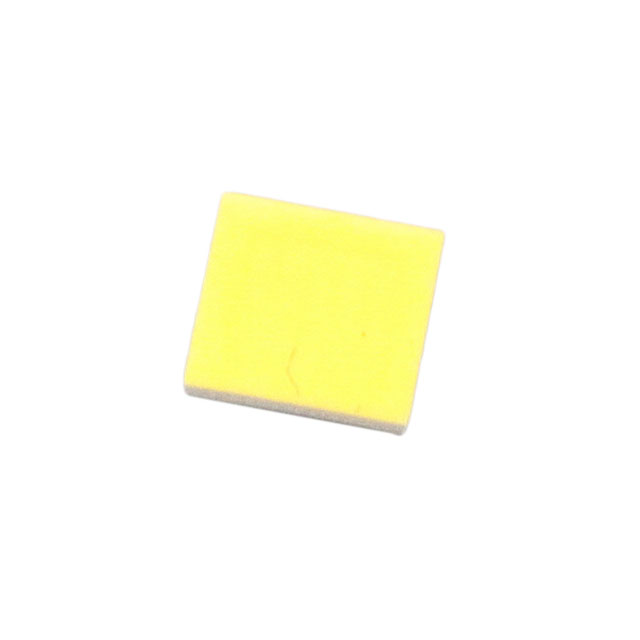

LED LH231B COOL WHITE 5000K SMD

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED LH231B COOL WHITE 5000K SMD

Technical Specifications

Parameters and characteristics for this part

LED LH231B COOL WHITE 5000K SMD

Part	Viewing Angle	Current - Max [Max]	Supplier Device Package	Package / Case	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Color	Mounting Type	CCT (K)	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Samsung Semiconductor, Inc. SCP7RTJ5HEL1RLQF6E	120 °	2 A	SMD	1111 (2828 Metric)	340 lm	310 lm	370 lm	Cool, White	Surface Mount	5000 K	5-Step MacAdam Ellipse	0.11 in	0.11 in	2.8 mm	2.8 mm	2.9 V	70	0.019 in	0.48 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LH231B White, Cool 5000K 5-Step MacAdam Ellipse 2.9V 700mA 120° 1111 (2828 Metric)

Technical documentation and resources

No documents available
