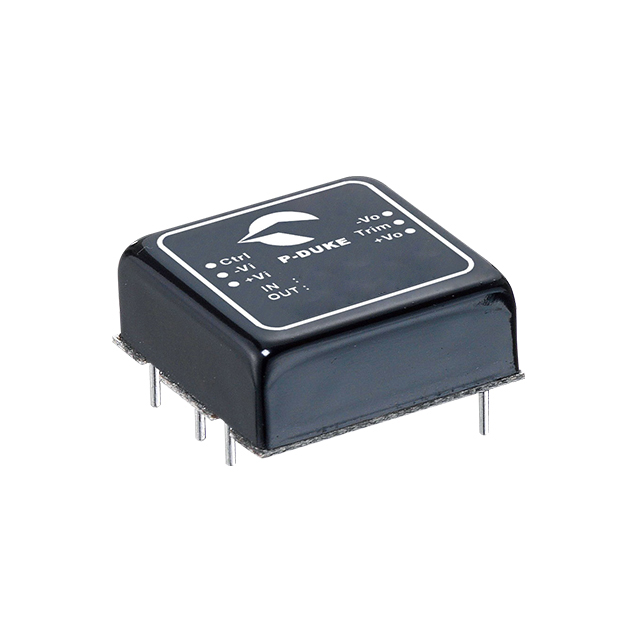

LCD30-24S24W

Active

P-DUKE Technology

DC DC CONVERTER 24V 30W

Search across all available documentation for this part.

Active

P-DUKE Technology

DC DC CONVERTER 24V 30W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Isolation	Applications	Number of Outputs	Mounting Type	Type	Voltage - Input (Max) [Max]	Power (Watts)	Control Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Output 1	Package / Case	Approval Agency	Features	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
P-DUKE Technology LCD30-24S12W	1.6 kV	ITE (Commercial)	1	Through Hole	Isolated Module	36 V	30 W	Active Low Enable	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	-40 °C	100 °C	89 %	12 V	6-DIP Module	CB CE cURus	Remote On/Off Standby Output	2.5 A	9 V
P-DUKE Technology LCD30-24D15W	1.6 kV	ITE (Commercial)	2	Through Hole	Isolated Module	36 V	30 W	Active Low Enable	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	-40 °C	100 °C	91 %	15 V	6-DIP Module	CB CE cURus	Adjustable Output Remote On/Off		9 V	-15 V	1 A	1 A
P-DUKE Technology LCD30-24S24W	1.6 kV	ITE (Commercial)	1	Through Hole	Isolated Module	36 V	30 W	Active Low Enable	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	-40 °C	100 °C	90 %	24 V	6-DIP Module	CB CE cURus	Remote On/Off Standby Output	1.25 A	9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 24V 1.25A 9V - 36V Input
