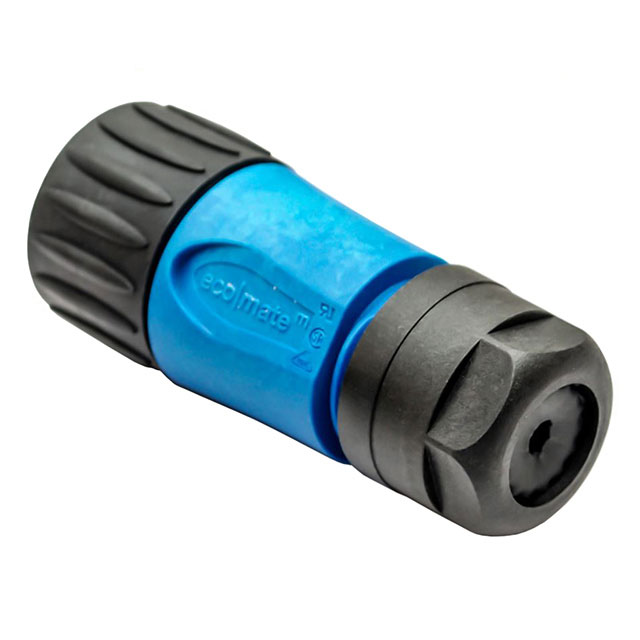

C016 10D006 000 10

Active

Amphenol Tuchel Industrial

CONN PLG HSG FMALE 7POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLG HSG FMALE 7POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C016 10D006 000 10

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.6 mm
Contact Type	Crimp
Features	Coupling Nut, Backshell
Housing Color	Black, Blue
Ingress Protection	IP67, IP65
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions [custom]	1
Number of Positions [custom]	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Polyamide (PA66), Nylon 6/6
Shielding	Unshielded
Type	For Female Sockets

CONN PLG HSG FMALE 7POS INLINE

Part	Shell Material	Contact Type	Orientation	Housing Color	Contact Size	Number of Positions [custom]	Number of Positions [custom]	Contact Shape	Features	Type	Mounting Type	Note	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Connector Type	Material Flammability Rating	Ingress Protection
Amphenol Tuchel Industrial C016 10D006 000 10	Polyamide (PA66), Nylon 6/6	Crimp	Keyed	Black, Blue	1.6 mm	1	6	Circular	Backshell, Coupling Nut	For Female Sockets	Free Hanging (In-Line)	Contacts Not Included	125 °C	-40 °C	Unshielded	Plug Housing	UL94 V-0	IP65, IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 (6 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
