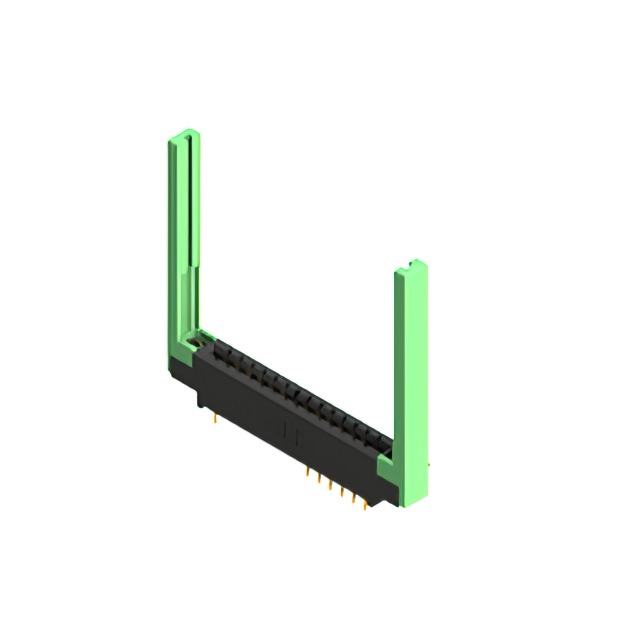

CARD EDGE CONNECTOR, 28 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-028-559-868
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 28 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-028-559-868 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
387-028 Series
...
| Part | Termination Rows | Number of Rows | Gender | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Termination | Number of Positions/Bay/Row [custom] | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Material - Insulation | Read Out | Contact Finish | Card Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | 1 | Female | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Solder | 28 | 28 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Cantilever | Copper Alloy | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Polyester Thermoplastic | Single | Gold | Non Specified - Single Edge | ||
EDAC Inc. | 2 | 2 | Female | Through Hole Right Angle | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Wire Wrap | 14 | 28 | 4-40 Threaded Insert Top Mount Opening | Cantilever | Copper Alloy | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Gold | Non Specified - Dual Edge | ||||
EDAC Inc. | 1 | 1 | Female | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Wire Wrap | 28 | 28 | 4-40 Threaded Insert Top Mount Opening | Cantilever | Copper Alloy | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Polyester Thermoplastic | Single | Gold | Non Specified - Single Edge | ||||
EDAC Inc. | 2 | 2 | Female | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Wire Wrap | 14 | 28 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Gold | Non Specified - Dual Edge | ||
EDAC Inc. | 2 | 2 | Female | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Solder | 14 | 28 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Copper Alloy | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Gold | Non Specified - Dual Edge | ||||
EDAC Inc. | 2 | 2 | Female | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Wire Wrap | 14 | 28 | 4-40 Threaded Insert Top Mount Opening | Cantilever | Copper Alloy | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Gold | Non Specified - Dual Edge | ||||
EDAC Inc. | 1 | 1 | Female | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Solder | 28 | 28 | Side Mount Opening Unthreaded | Cantilever | Copper Alloy | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Polyester Thermoplastic | Single | Gold | Non Specified - Single Edge | 3.25 mm | 0.128 in | ||
EDAC Inc. | 2 | 2 | Female | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Solder | 14 | 28 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Copper Alloy | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Polyester Thermoplastic | Dual | Gold | Non Specified - Dual Edge | ||||
EDAC Inc. | 1 | 1 | Female | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Wire Wrap | 28 | 28 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Cantilever | Copper Alloy | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Polyester Thermoplastic | Single | Gold | Non Specified - Single Edge | ||
EDAC Inc. | 1 | 1 | Female | Through Hole | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | Wire Wrap | 28 | 28 | 4-40 Threaded Insert Top Mount Opening | Cantilever | Copper Alloy | -40 °C | 105 ░C | 0.156 in | 3.96 mm | Polyester Thermoplastic | Single | Gold | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 15.63 | |
Description
General part information
387-028 Series
28 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
