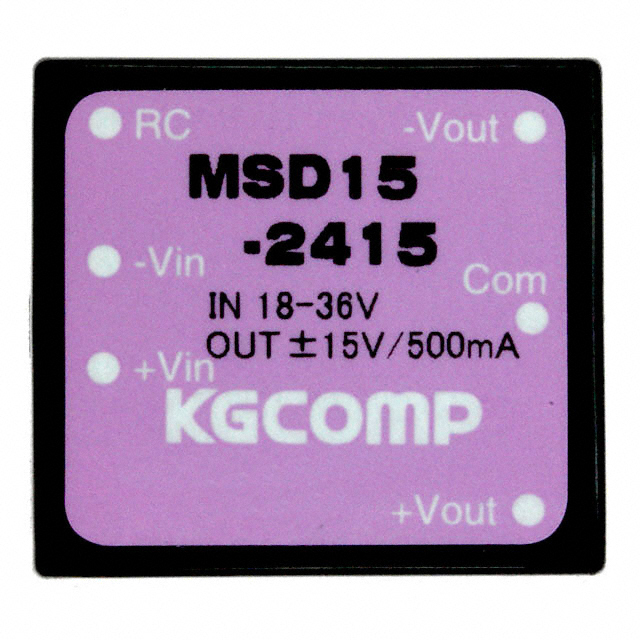

MSD15-2415
ObsoleteVolgen + Furuno
DC DC CONVERTER +/-15V 15W
MSD15-2415
ObsoleteVolgen + Furuno
DC DC CONVERTER +/-15V 15W
Description
General part information
MSD15-2415
Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 18V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MSD15-2415 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC |
| Current - Output (Max) | 500 mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 71 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.39 in |
| Size / Dimension Length | 1.1 in |
| Size / Dimension Width | 1 in |
| Standard Number | 60950-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
