RG405-SMPFRA-SM(QTY:4Ft)
ActiveMcGill Microwave Systems
RG405 CABLE ASSY 4 FT SMPFRA TO
RG405-SMPFRA-SM(QTY:4Ft)
ActiveMcGill Microwave Systems
RG405 CABLE ASSY 4 FT SMPFRA TO
Description
General part information
RG405-SMPFRA-SM(QTY:4Ft)

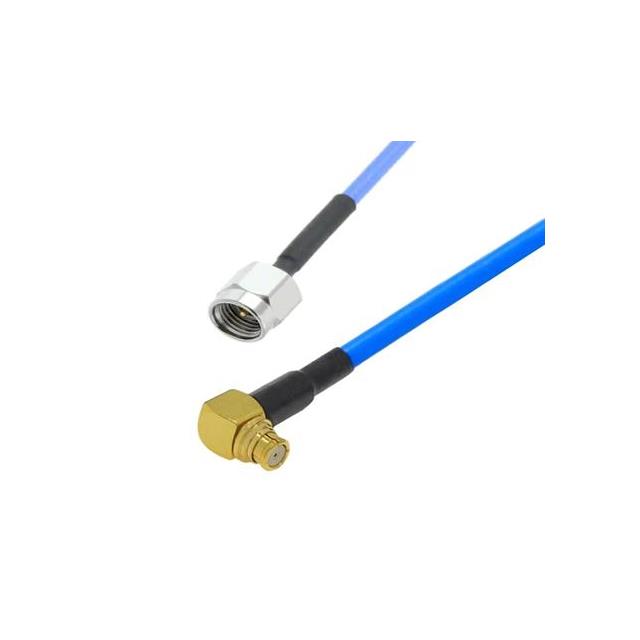

Cable Assembly Coaxial SMP to SMA RG-405 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG405-SMPFRA-SM(QTY:4Ft) |
|---|---|
| 1st Connector | SMP Jack, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 405 |
| Color | Blue |
| Frequency - Max | 3 GHz |
| Length | 48 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Style | SMA, SMP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
