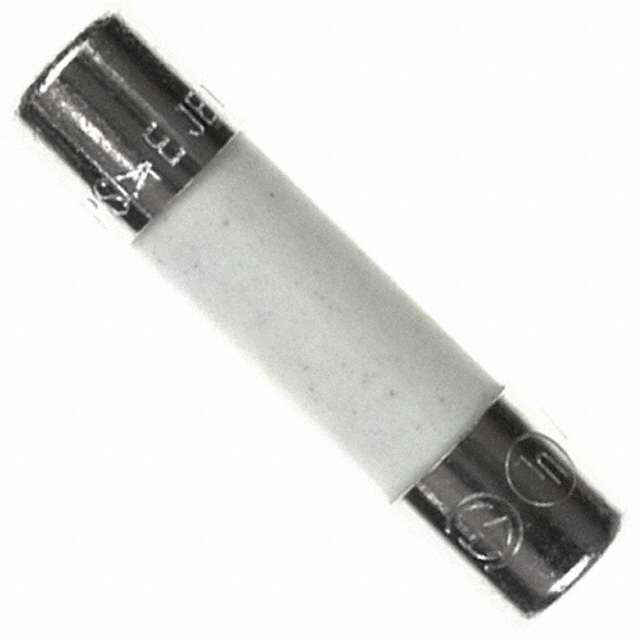

5TT 8
ObsoleteBel Fuse Inc.
FUSE CERAMIC 8A 125VAC 5X20MM
5TT 8
ObsoleteBel Fuse Inc.
FUSE CERAMIC 8A 125VAC 5X20MM
Description
General part information
5TT 8
8 A 125 V AC DC Fuse Cartridge, Ceramic Requires Holder 5mm x 20mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 5TT 8 |
|---|---|
| Approval Agency | CSA, PSE, CE |
| Breaking Capacity | 10 kA |
| Current Rating | 8 A |
| DC Cold Resistance | 0.01 Ohms |
| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 319 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 5mm x 20mm |
| Package Diameter | 5 mm, 20 mm |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Width | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.201 in |
| Size / Dimension Length | 0.787 in |
| Voltage Rating - AC | 125 V |
