1739295
ActivePhoenix Contact

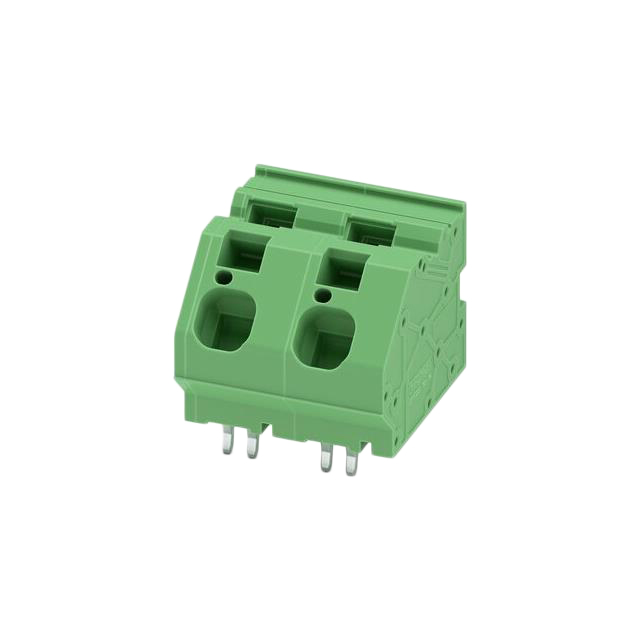

TERM BLOCK 2POS 45DEG 15MM PCB
1739295
ActivePhoenix Contact
TERM BLOCK 2POS 45DEG 15MM PCB
Description
General part information
1739295
2 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.591" (15.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1739295 |
|---|---|
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.591 in |
| Positions Per Level | 2 |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 6 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
