MW-3/8-48"-BLACK-125 PCS

Active

HEATSHRINK 3/8" BLACK 1=1PC

Search across all available documentation for this part.

Active

HEATSHRINK 3/8" BLACK 1=1PC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MW-3/8-48"-BLACK-125 PCS	MW-3/8 Series

Color	Black	Red, Black
Features	Chemical Resistant, Adhesive Lined, Solvent Resistant	Chemical Resistant, Adhesive Lined, Solvent Resistant
Inner Diameter - Recovered [diameter]	0.13 "	0.13 "
Inner Diameter - Recovered [diameter]	3.3 mm	3.3 mm
Inner Diameter - Supplied [diameter]	0.375 in	0.375 in
Inner Diameter - Supplied [diameter]	9.53 mm	9.53 mm
Length	-	152.4 mm
Length	-	6 "
Length	-	0.5 '
Length [x]	1.22 m	1.22 m
Length [x]	4 ft	4 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	1.27 mm	1.27 mm
Recovered Wall Thickness	0.05 in	0.05 in
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	135 C	135 C
Shrinkage Ratio [Max]	2.5	2.5
Shrinkage Ratio [Min]	1	1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Semi Rigid	Tubing, Semi Rigid

HEATSHRINK 3/8" RED

Part	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]	Material	Type	Shrink Temperature	Shelf Life	Shelf Life Start	Color	Features	Length	Length	Length
3M MW-3/8-48"-RED-125 PCS	1.27 mm	0.05 in	0.375 in	9.53 mm	1.22 m	4 ft	-55 °C	110 °C	27 °C, 80 °F	10 °C	0.13 "	3.3 mm	2.5	1	Polyolefin (PO)	Tubing, Semi Rigid	135 C	120 Months	Date of Manufacture	Red	Adhesive Lined, Chemical Resistant, Solvent Resistant
3M MW-3/8-6"-BLACK-10-10 PC PKS	1.27 mm	0.05 in	0.375 in	9.53 mm			-55 °C	110 °C	27 °C, 80 °F	10 °C	0.13 "	3.3 mm	2.5	1	Polyolefin (PO)	Tubing, Semi Rigid	135 C	120 Months	Date of Manufacture	Black		152.4 mm	6 "	0.5 '
3M MW-3/8-48"-BLACK-125 PCS	1.27 mm	0.05 in	0.375 in	9.53 mm	1.22 m	4 ft	-55 °C	110 °C	27 °C, 80 °F	10 °C	0.13 "	3.3 mm	2.5	1	Polyolefin (PO)	Tubing, Semi Rigid	135 C	120 Months	Date of Manufacture	Black	Adhesive Lined, Chemical Resistant, Solvent Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

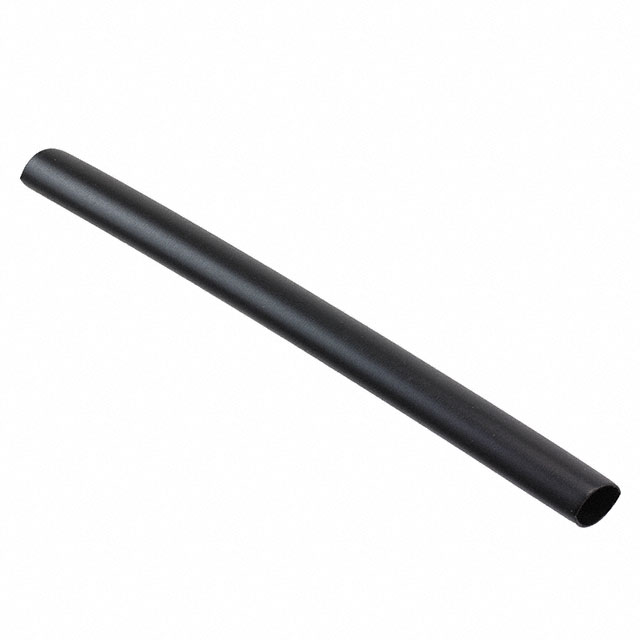

Heat Shrink Tubing, Semi Rigid 0.375" (9.53mm) 2.5 to 1 Black 4.00' (1.22m)
