VLF5012ST-4R7M1R4
ObsoleteTDK Corporation
FIXED IND 4.7UH 1.4A 160MOHM SMD
VLF5012ST-4R7M1R4
ObsoleteTDK Corporation
FIXED IND 4.7UH 1.4A 160MOHM SMD
Description
General part information
VLF5012ST-4R7M1R4

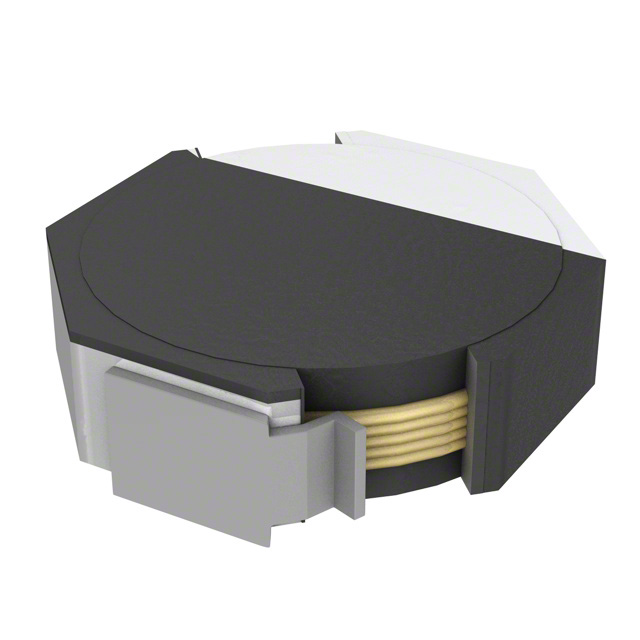

4.7 µH Shielded Drum Core, Wirewound Inductor 1.4 A 160mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLF5012ST-4R7M1R4 |
|---|---|
| Current - Saturation (Isat) | 1.7 A |
| Current Rating | 1.4 A |
| DC Resistance (DCR) (Max) | 160 mOhm |
| Height - Seated (Max) | 0.047 in |
| Inductance | 4.7 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.185 in |
| Size / Dimension Width | 0.177 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
