6861332123F

Active

DIALIGHT

16MM HO/O PMI-6VDC

Search across all available documentation for this part.

Active

DIALIGHT

16MM HO/O PMI-6VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

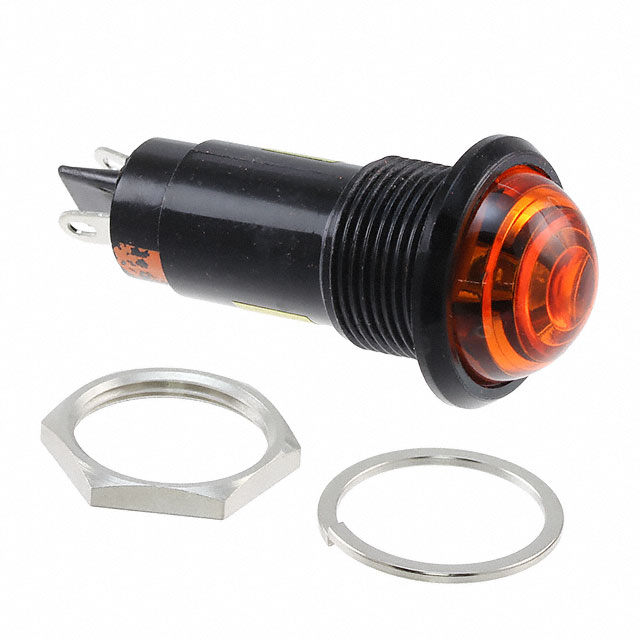

LED PANEL INDCATOR ORANGE 24V

Part	Millicandela Rating	Wavelength - Peak	Lamp Color	Lens Size [diameter]	Viewing Angle	Panel Cutout Shape	Ratings	Current	Type	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Termination Style	Lens Style
DIALIGHT 6861332143F	2000 mcd	605 nm	Orange	18 mm	30 °	Round	DC	30 mA	LED	24 V	16.51 mm	0.65 in	Solder Lug	Round with Domed Top
DIALIGHT 6861332123F	500 mcd		Yellow			Round	DC	30 mA	LED	6 V	16.51 mm	0.65 in	Solder Lug
DIALIGHT 6861332133F	500 mcd		Yellow			Round	DC	30 mA	LED	12 V	16.51 mm	0.65 in	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Yellow 6V 30mA Solder Lug

Technical documentation and resources

No documents available
