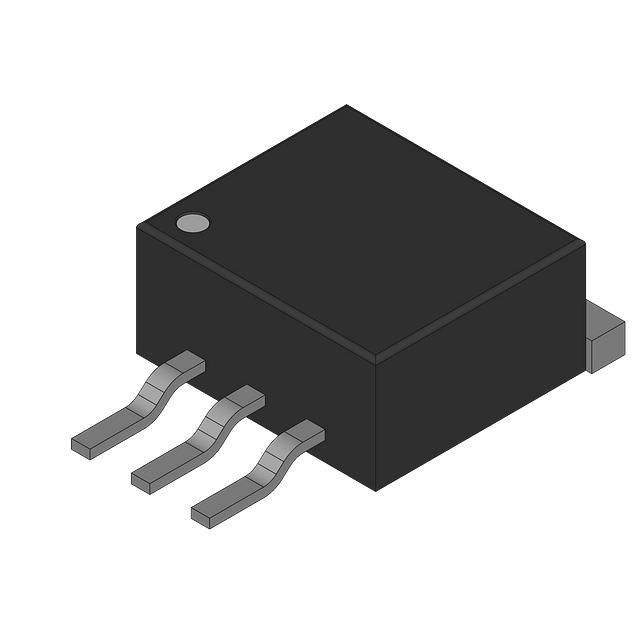

2SK3712-Z-E1-AZ

Active

Renesas Electronics Corporation

SWITCHING N-CHANNEL POWER MOSFET

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

SWITCHING N-CHANNEL POWER MOSFET

Technical Specifications

Parameters and characteristics for this part

Specification	2SK3712-Z-E1-AZ

Current - Continuous Drain (Id) @ 25°C	9 A
Drain to Source Voltage (Vdss)	250 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	14 nC
Input Capacitance (Ciss) (Max) @ Vds	450 pF
Mounting Type	Surface Mount
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Rds On (Max) @ Id, Vgs	580 mOhm
Supplier Device Package	TO-252 (MP-3Z)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	4.5 V

Switching N-Channel Power Mosfet

Part	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Technology	Input Capacitance (Ciss) (Max) @ Vds	Package / Case	Gate Charge (Qg) (Max) @ Vgs	Supplier Device Package	FET Type	Mounting Type	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id
Renesas Electronics Corporation 2SK3712-Z-E1-AZ	9 A	580 mOhm	MOSFET (Metal Oxide)	450 pF	DPAK (2 Leads + Tab), SC-63, TO-252-3	14 nC	TO-252 (MP-3Z)	N-Channel	Surface Mount	250 V	4.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	243	$ 1.24

General part information

The 2SK3712-Z is a Switching N-Channel Power Mosfet.
